Server component identification 73

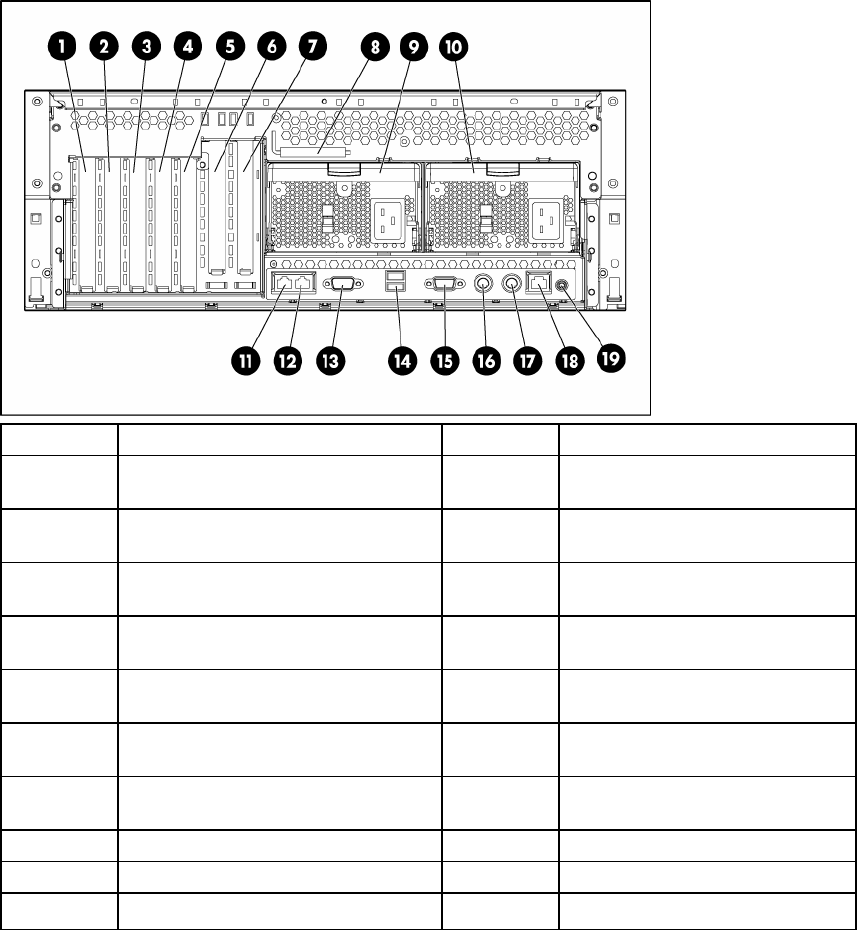

Rear panel components
Item Description Item Description
1
PCI-X non-hot-plug slot 7, 64-bit/100-
MHz
11 NIC port 2
2
PCI-X non-hot-plug slot 6, 64-bit/100-
MHz
12 NIC port 1
3
PCI-X non-hot-plug slot 5, 64-bit/133-
MHz
13 Serial port
4
PCI-X non-hot-plug slot 4, 64-bit/133-
MHz
14 USB ports
5
PCI-X non-hot-plug slot 3, 64-bit/133-
MHz
15 Video port
6
Optional PCI-X Hot Plug or optional PCI
Express non-hot-plug expansion slot 2
16 Keyboard port
7
Optional PCI-X Hot Plug or optional PCI
Express non-hot-plug expansion slot 1
17 Mouse port
8 T-15 Torx screwdriver 18 iLO NIC
9 Optional power supply (redundant) 19 UID
10 Power supply (primary)
