Removal and replacement procedures 59
CAUTION: Only memory boards with a green Removable LED can be removed. Do not attempt to remove
any memory board with the Removable LED off.
CAUTION: To prevent system failure, do not remove the memory board from the server until the board
status LED stops flashing.

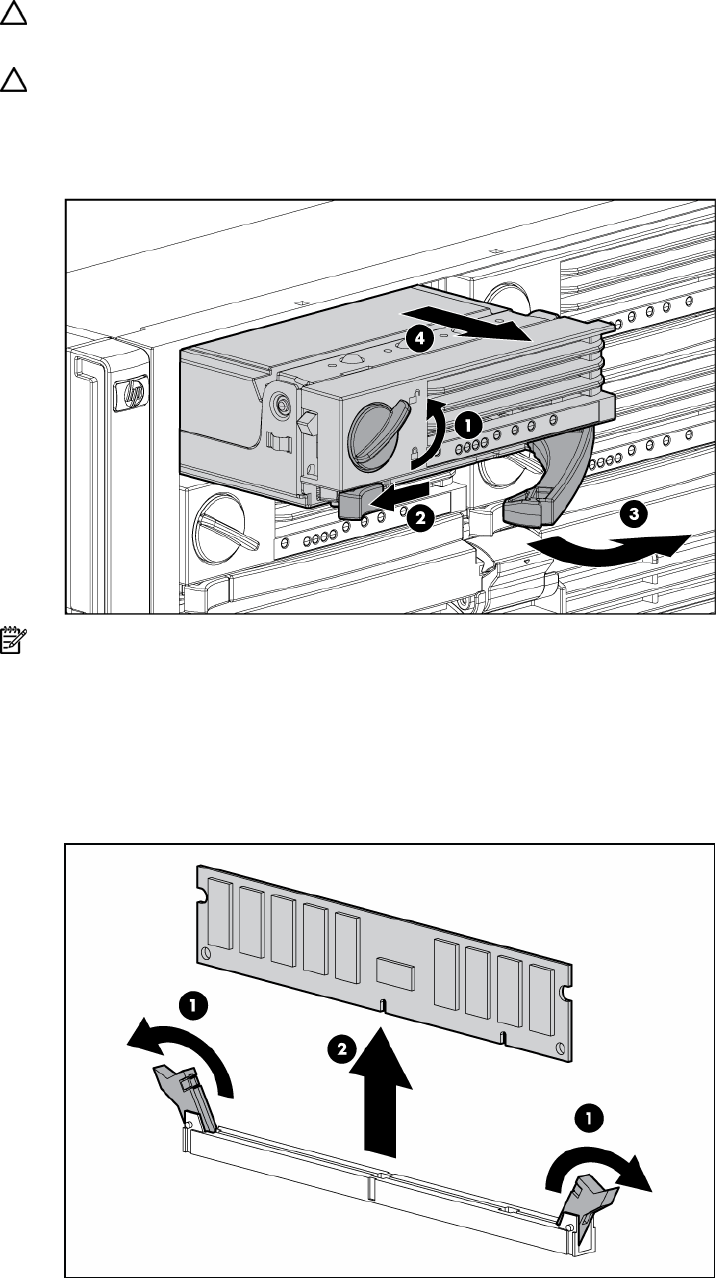

2. Unlock the locking switch, and open the release latch.
3. Use the ejector lever to pull the memory board out of the server.
NOTE: While the memory board with the failed or degraded DIMM is being replaced, the server continues
to read and write from the operational memory board.
Removing DIMMs
1. Remove the memory board using the appropriate hot-replace or non-hot-plug procedure ("Removing
a memory board (non-hot-plug)" on page 57).
2. Remove the DIMM.
To replace the component, reverse the removal procedure.
