Removal and replacement procedures 19
6.

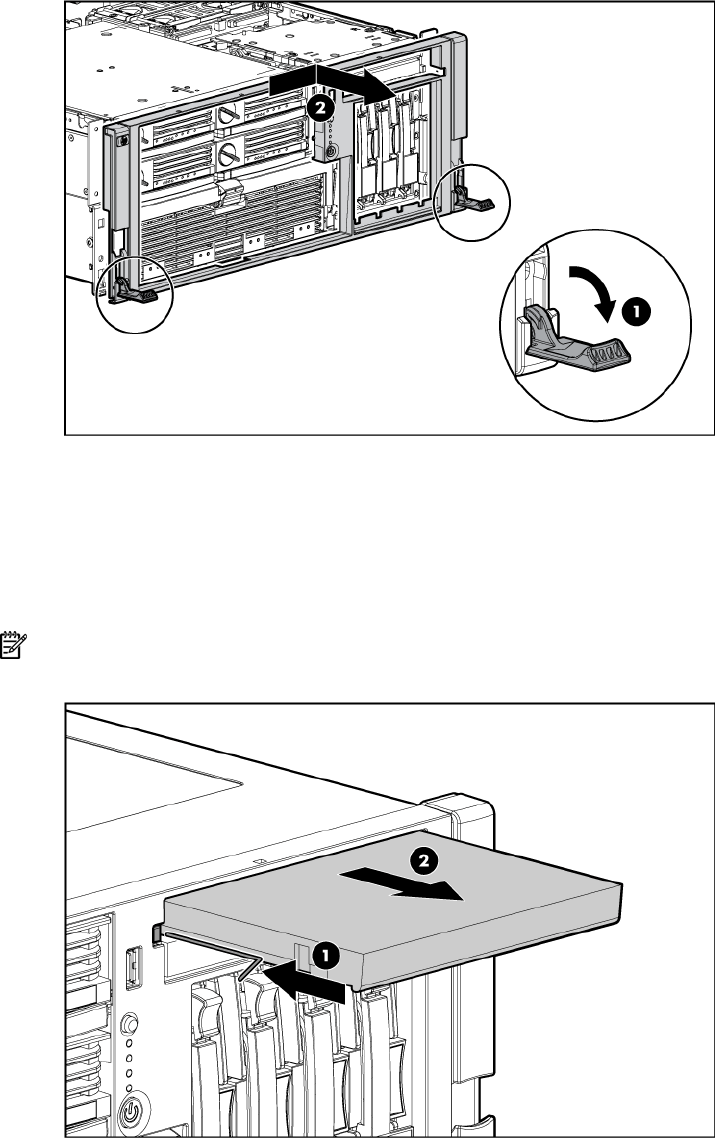

Slide the bezel to the right, and detach the bezel from the server.
To replace the component, reverse the removal procedure.
Removing a media drive blank
1. Power down the server (on page 16).
2. Use the T-15 Torx screwdriver to eject the drive blank, and pull the drive blank out of the server.
NOTE: The T-15 Torx screwdriver is shipped with the server and can be located on the rear panel ("Rear
panel components" on page 73).
To replace the component, reverse the removal procedure.
Removing a media drive
To remove the DVD drive, optional diskette drive, or optional CD-RW drive:
