Component identification 91
All slots are non-hot-plug.
PCI riser board expansion slot definitions
Slot PCIe riser board Mixed PCIe/PCI-X riser board PCIe x16 riser board
5 x8 64-bit/133-MHz —
4 x8 64-bit/133-MHz x16
3 x4 x8 x4
All slots are non-hot-plug.

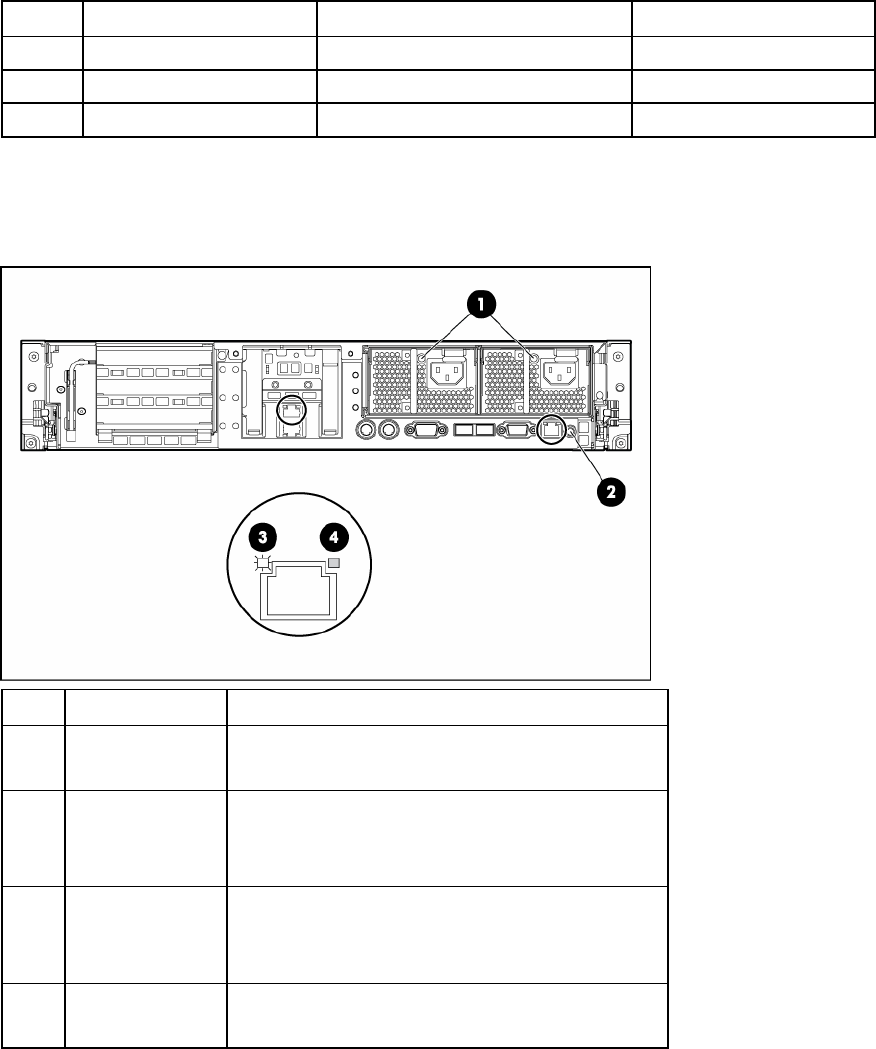

Rear panel LEDs and buttons
Item Description Status
1 Power supply LED Green = Normal
Off = System is off or power supply has failed
2 UID LED button Blue = Activated
Flashing = System being remotely managed
Off = Deactivated
3 NIC/iLO 2 activity
LED
Green = Network activity
Flashing = Network activity
Off = No network activity
4 NIC/iLO 2 link
LED
Green = Network link
Off = No network link
