Removal and replacement procedures 71
20.

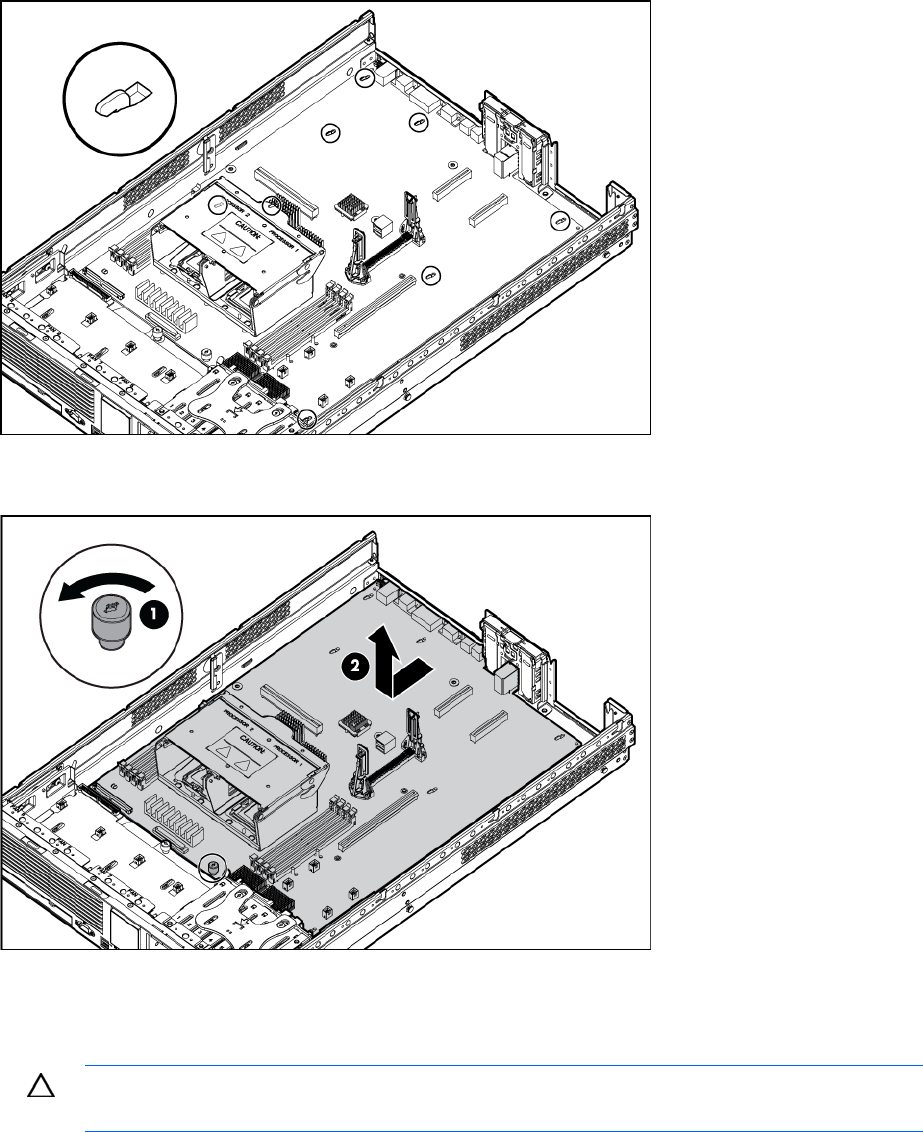

Identify the eight alignment keys and keyhole locations.
21. Loosen the system board thumbscrew.
22. Remove the failed system board.
23. Remove the I/O fan bracket ("I/O fan bracket" on page 75).
To migrate the processor to the spare system board:
1. Install the spare system board.
CAUTION: The pins on the processor socket are very fragile. Any damage to them may
require replacing the system board.
2. Prepare the processor socket on the spare system board:
