HP ProLiant DL385 Generation 2 Server Maintenance and Service Guide

Removal and replacement procedures 65
5.

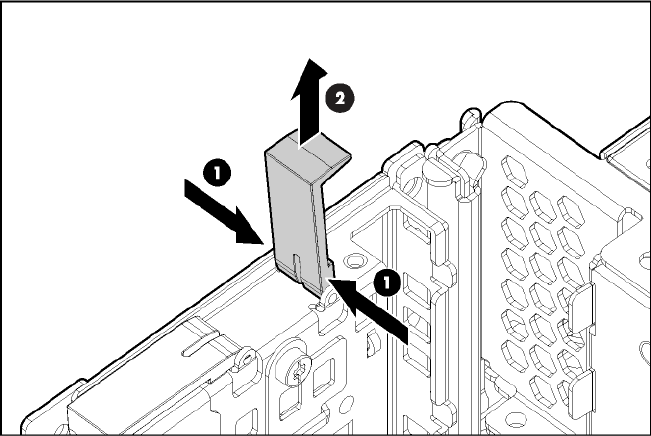

Remove the expansion slot cover retainer.
To replace the component, reverse the removal procedure.
Expansion boards
Expansion board (slots 1 and 2)
To remove the component:
1. Power down the server (on page 29).
2. Extend or remove the server from the rack ("Extend the server from the rack" on page 28, "Remove
the server from the rack" on page 30).
3. Remove the access panel ("Access panel" on page 31).
4. Disconnect any internal or external cables connected to the expansion board.
