Removal and replacement procedures 56
3.

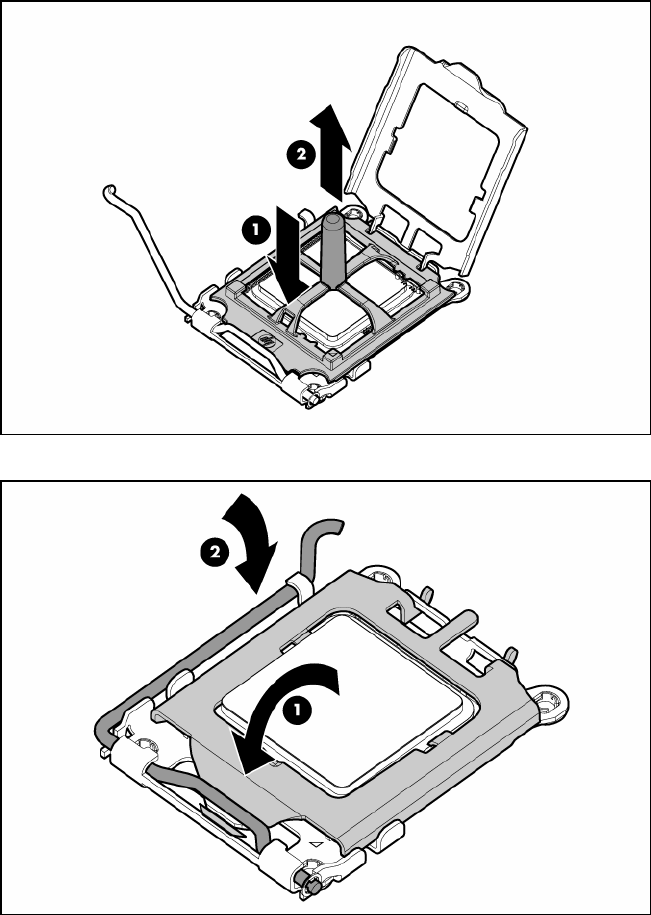

Press down firmly until the processor installation tool clicks and separates from the processor, and
then remove the processor installation tool.
4. Close the processor retaining bracket and the processor retaining latch.
5. Clean the old thermal grease from the heatsink with the alcohol swab. Allow the alcohol to
evaporate before continuing.
