Removal and replacement procedures 52
3.

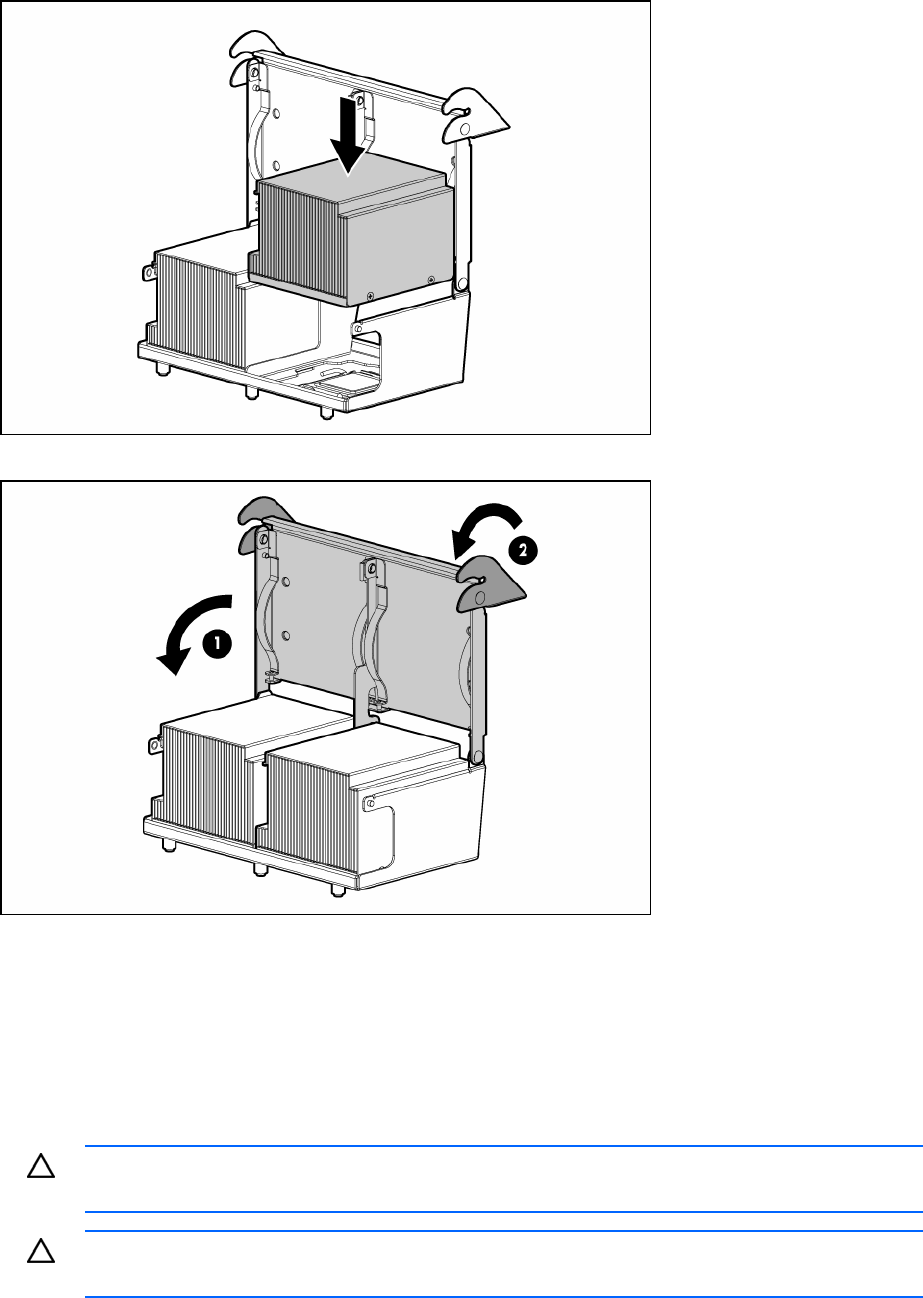

Install the heatsink.
4. Close and lock the heatsink retaining latches.
5. Install the air baffle.
6. Install the access panel ("Access panel" on page 31).
7. Install the server into the rack.
8. Power up the server.
Processor
CAUTION: To avoid damage to the processor and system board, only authorized personnel
should attempt to replace or install the processor in this server.
CAUTION: To prevent possible server malfunction and damage to the equipment,
multiprocessor configurations must contain processors with the same part number.
