Removal and replacement procedures 51
6.

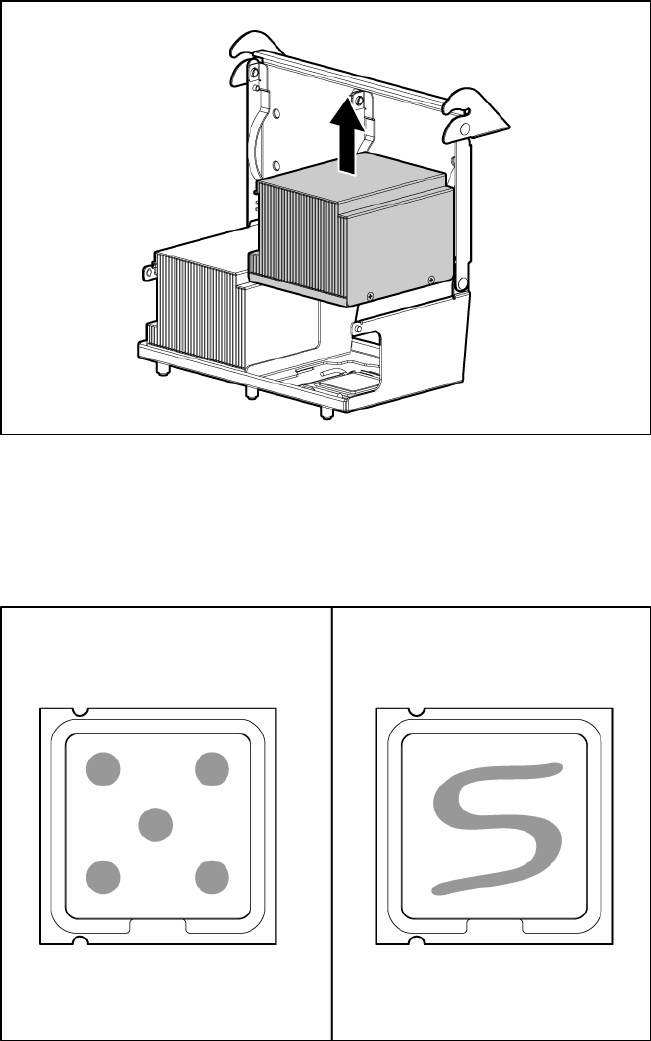

Remove the heatsink.
To replace the heatsink:
1. Clean the old thermal grease from the processor with the alcohol swab. Allow the alcohol to
evaporate before continuing.
2. Apply all the grease to the top of the processor in one of the following patterns to ensure even
distribution:
