Removal and replacement procedures 50
6.

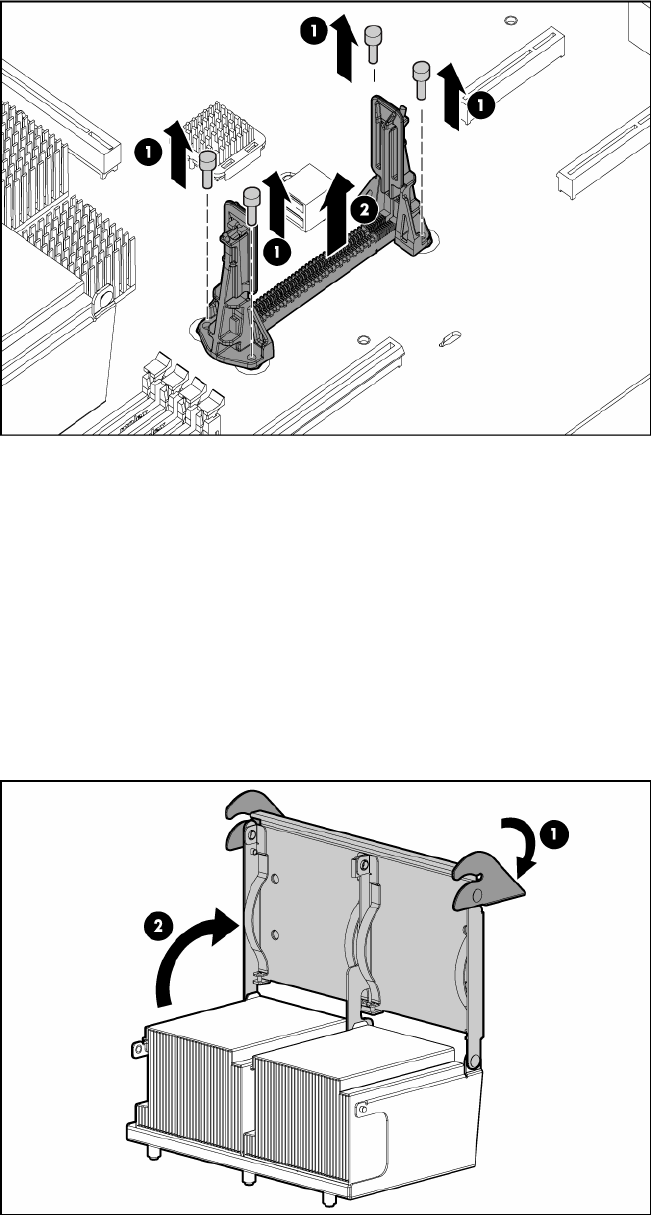

Remove the PPM retainer.
To replace the component, reverse the removal procedure.
Heatsink
To remove the heatsink:
1. Power down the server (on page 29).
2. Extend the server from the rack (on page 28).
3. Remove the access panel ("Access panel" on page 31).
4. Remove the air baffle ("Air baffle" on page 41).
5. Open the heatsink retaining bracket.
