Removal and replacement procedures 46
7.

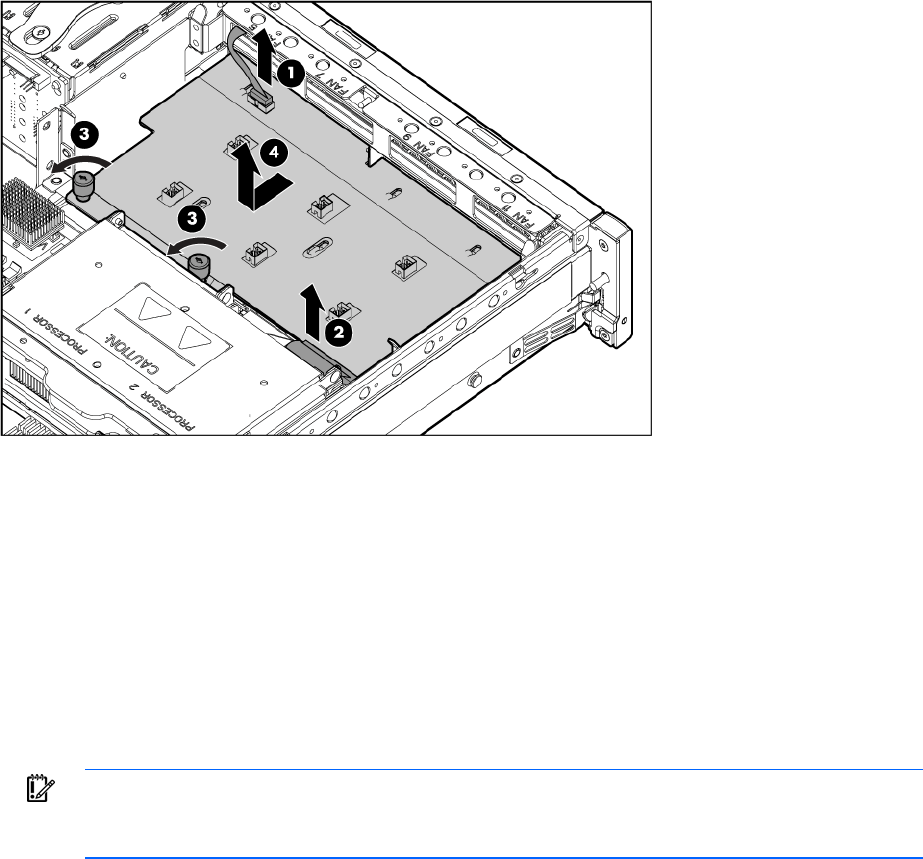

Remove the fan board.
To replace the component, reverse the removal procedure.
Processor fan bracket plate
To remove the component:
1. Power down the server (on page 29).
2. Extend or remove the server from the rack ("Extend the server from the rack" on page 28, "Remove
the server from the rack" on page 30).
3. Remove the access panel ("Access panel" on page 31).
4. Remove the air baffle ("Air baffle" on page 41).
IMPORTANT: For this procedure, you do not need to remove the hot-plug fans from the
processor fan bracket. When reinstalling the processor fan bracket, press the top of each fan
to be sure it seats securely.
5. Remove the processor fan bracket ("Processor fan bracket" on page 42).
6. Remove the fan board ("Fan board" on page 45).
