Removal and replacement procedures 44
6.

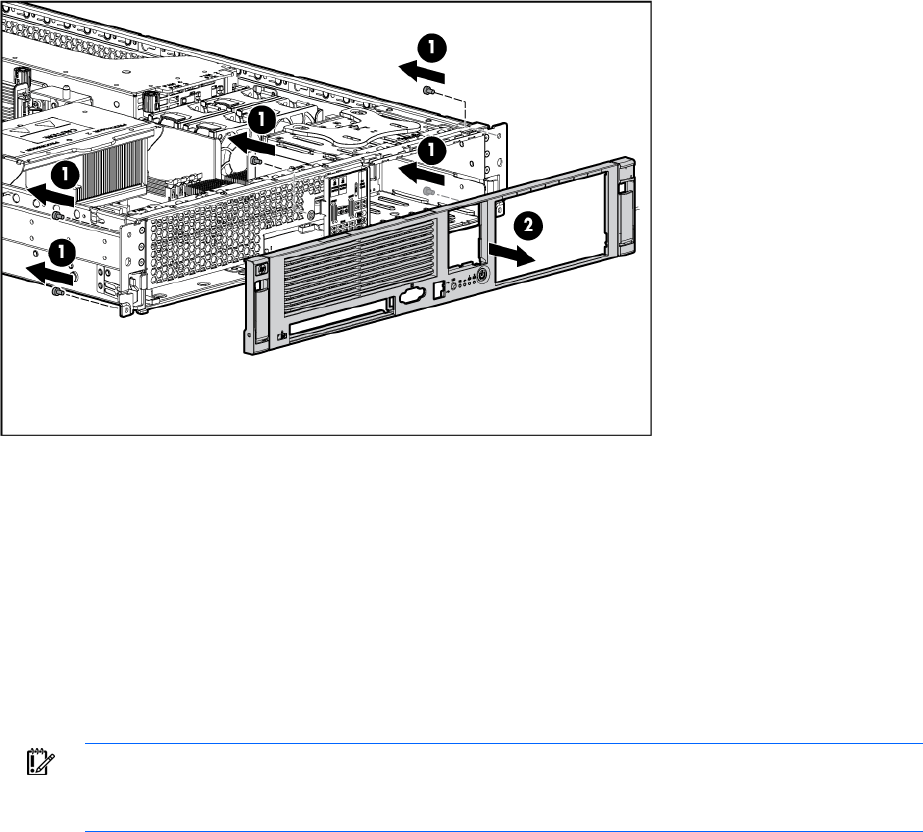

Remove the five T-15 Torx screws and detach the front bezel.
To replace the component, reverse the removal procedure.
Systems Insight Display
To remove the component:
1. Power down the server (on page 29).
2. Extend the server from the rack (on page 28).
3. Remove the access panel ("Access panel" on page 31).
4. Remove the air baffle ("Air baffle" on page 41).
IMPORTANT: For this procedure, you do not need to remove the hot-plug fans from the
processor fan bracket. When reinstalling the processor fan bracket, press the top of each fan
to be sure it seats securely.
5. Remove the processor fan bracket ("Processor fan bracket" on page 42).
6. Disconnect the Systems Insight Display cable.
