Removal and replacement procedures 42
CAUTION: Do not detach the cable that connects the battery pack to the cache module.
Detaching the cable causes any unsaved data in the cache module to be lost.
4. Remove the battery pack from the air baffle ("Removing the battery pack" on page 40).
5. Remove all hard drive cables from the air baffle.

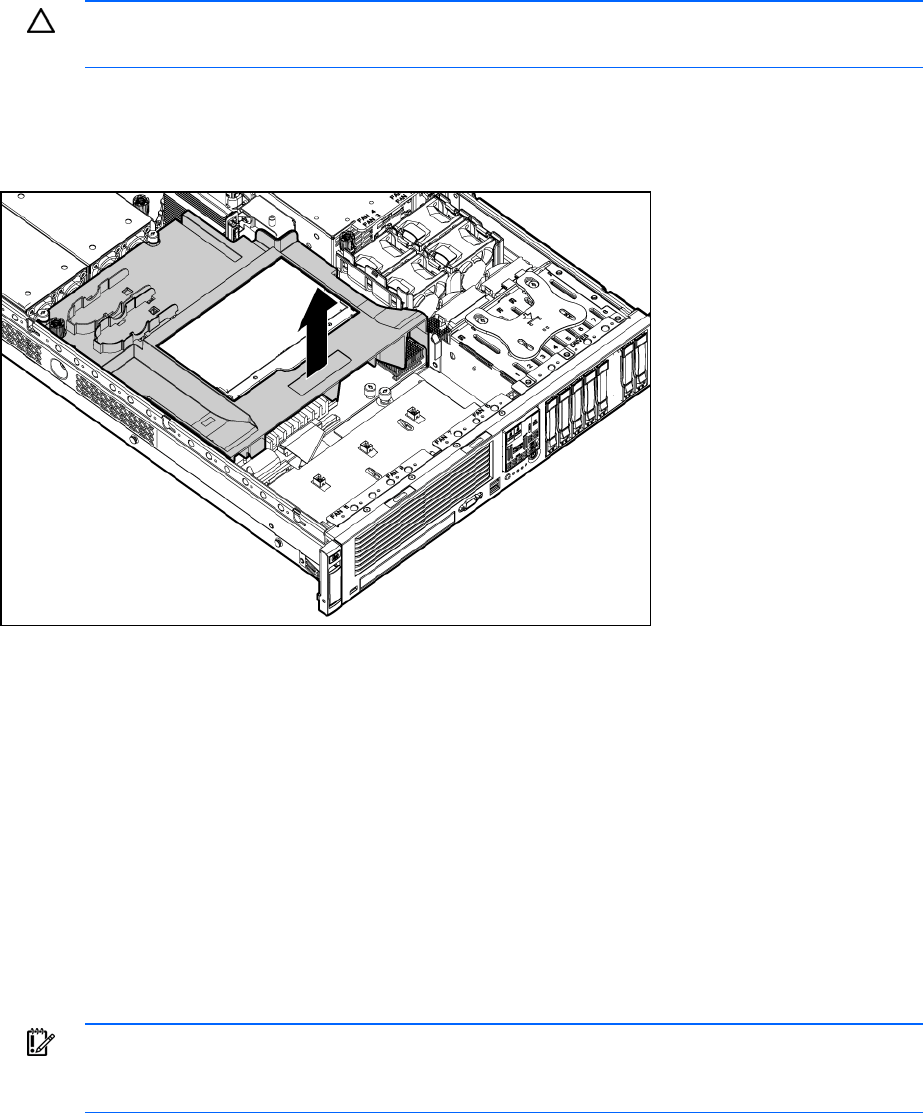

6. Remove the air baffle.
To replace the component, reverse the removal procedure.
Processor fan bracket
These procedures apply to both the 6- and 12-fan configurations. If necessary, configuration-specific
illustrations are provided.
To remove the component:
1. Power down the server (on page 29).
2. Extend or remove the server from the rack ("Extend the server from the rack" on page 28, "Remove
the server from the rack" on page 30).
3. Remove the access panel ("Access panel" on page 31).
4. Remove the air baffle ("Air baffle" on page 41).
IMPORTANT: For this procedure, you do not need to remove the hot-plug fans from the
processor fan bracket. When reinstalling the processor fan bracket, press the top of each fan
to be sure it seats securely.
