Removal and replacement procedures 31
NOTE: To access some components, you may need to remove the cable management arm.

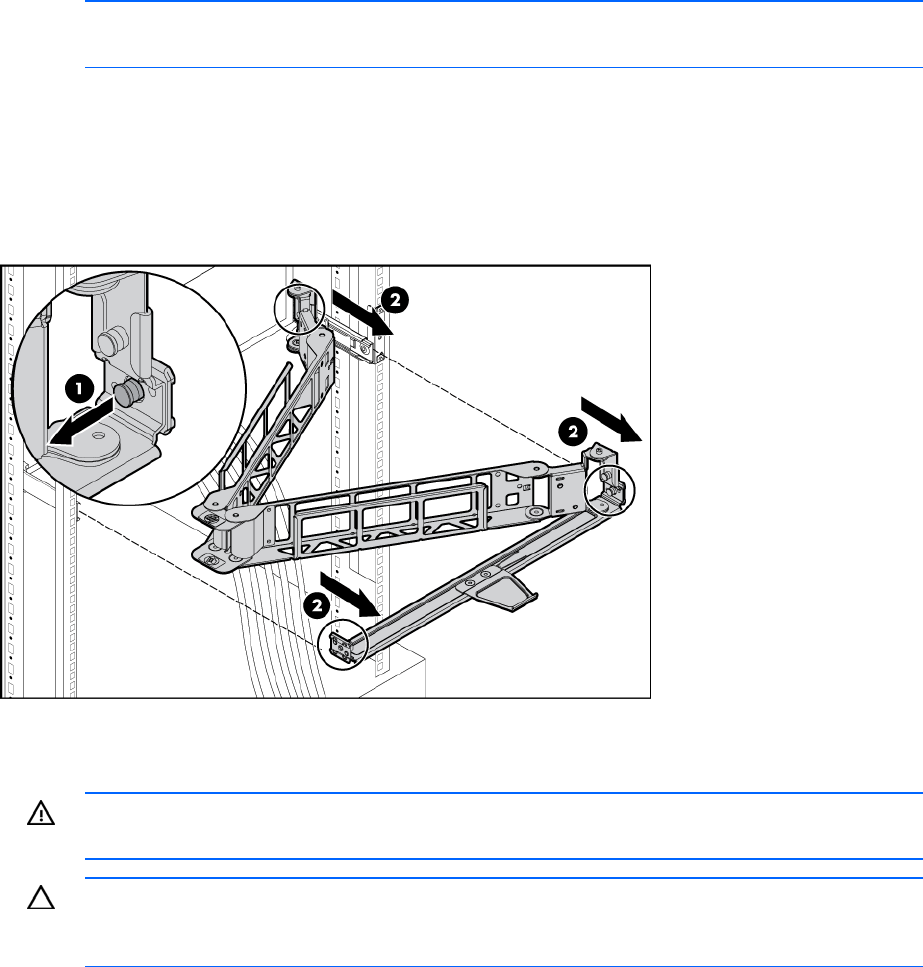

To access the product rear panel components, open the cable management arm:
1. Power down the server (on page 29).
2. Swing open the cable management arm.
3. Remove the cables from the cable trough.
4. Remove the cable management arm.
Access panel
WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the
internal system components to cool before touching them.
CAUTION: Do not operate the server for long periods with the access panel open or removed.
Operating the server in this manner results in improper airflow and improper cooling that can
lead to thermal damage.
To remove the component:
1. Power down the server if performing a non-hot-plug installation or maintenance procedure ("Power
down the server" on page 29).
2. Extend the server from the rack (on page 28).
3. Use the T-15 Torx screwdriver attached to the rear of the server to loosen the security screw on the
hood latch.
4. Lift up on the hood latch handle and remove the access panel.
To replace the component, reverse the removal procedure.
