Illustrated parts catalog 21

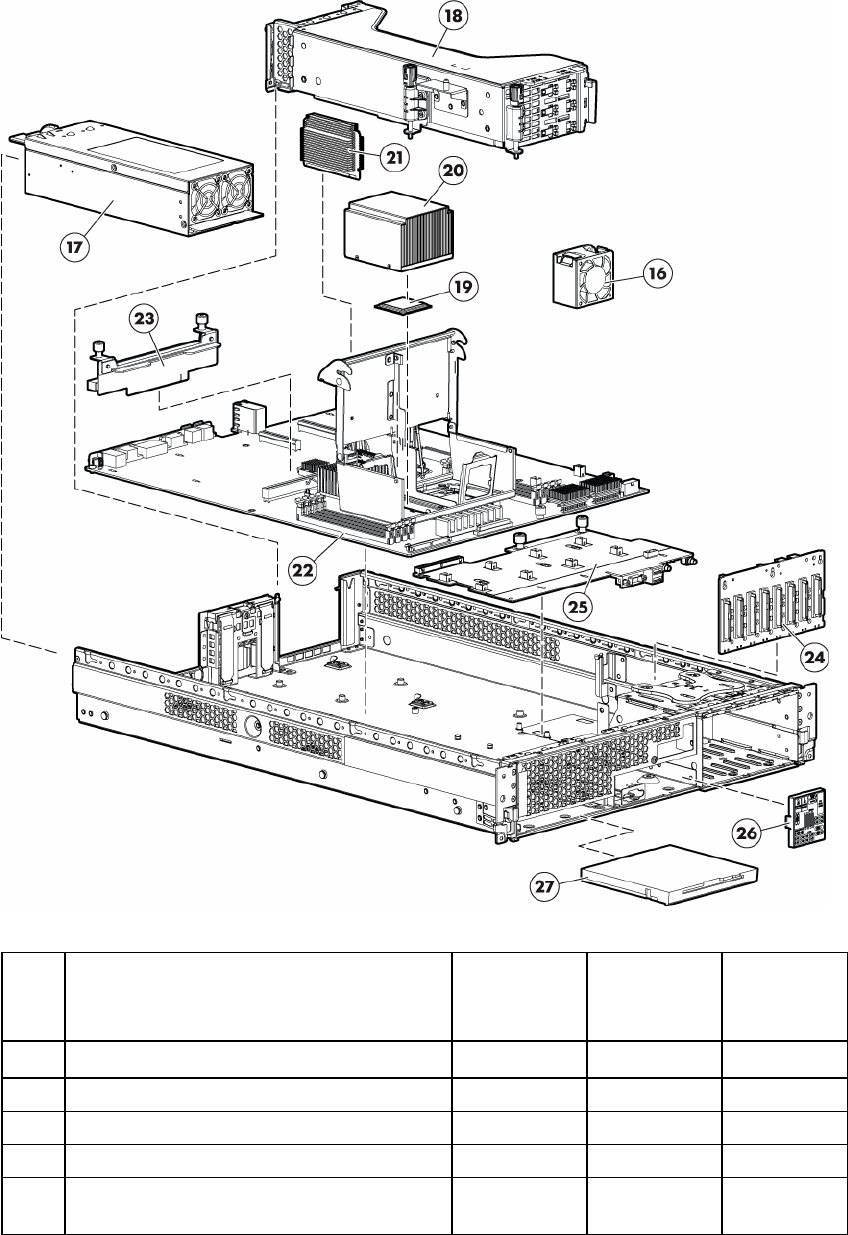

System components
Item Description Assembly
part number
Spare part
number
Customer
self repair
(on page 6)
System components
16 Hot-plug fan, 60-mm 394035-001 407747-001 Mandatory
1
17 Hot-plug power supply, 1000-W 380622-001 403781-001 Mandatory
1
18 PCI riser cage — — —
a) PCI riser cage, with non-hot-plug PCIe
(standard)
412878-001 408786-001 Optional
2
