Component identification 103

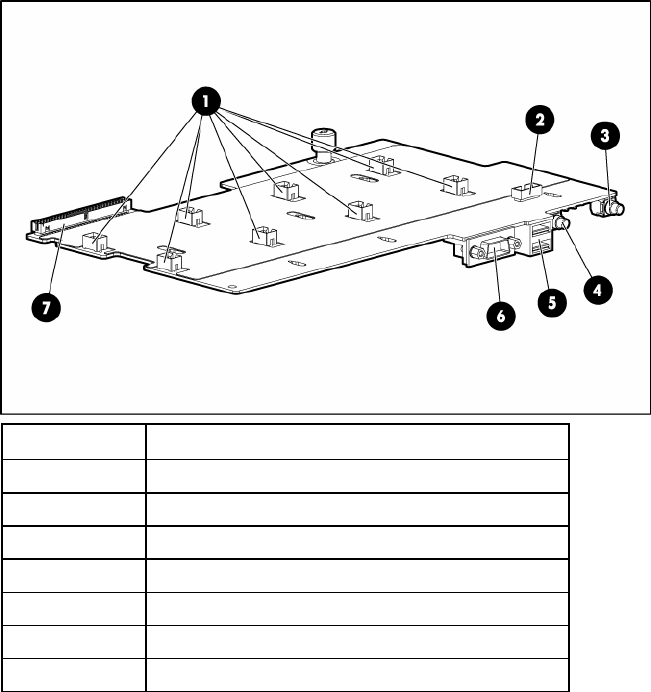

Fan board components
Item Description
1 Fan connectors (8)*
2 Systems Insight Display connector
3 Power On/Standby button/system power LED
4 UID LED button
5 USB connectors (2)
6 Video connector
7 Fan board system connector
*Only the 12-fan configuration supports all connectors.
