Component identification 7
Component identification

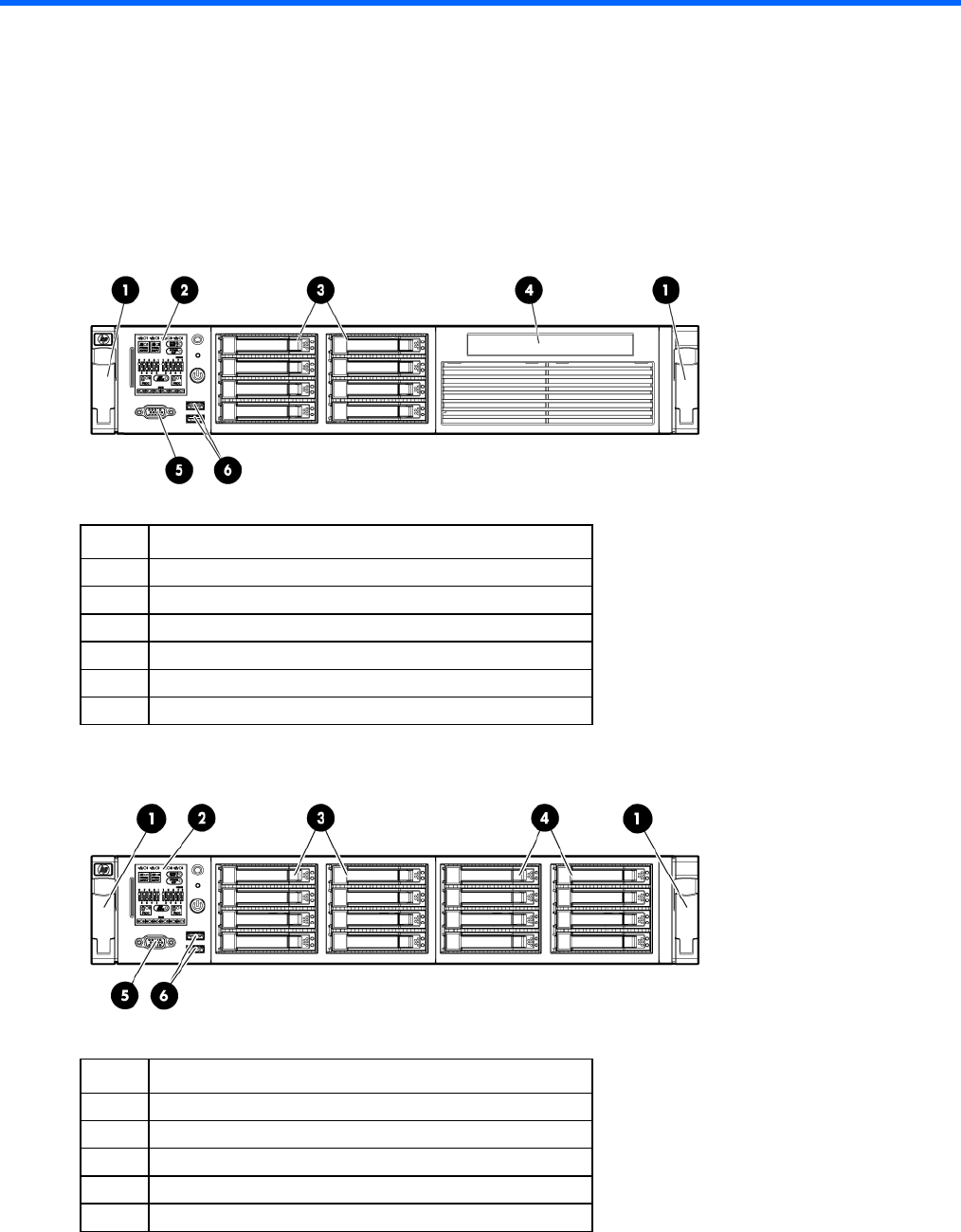

Front panel components
• SFF model
Item Description
1
Quick release levers (2)
2
Systems Insight Display
3
Hard drive bays
4
SATA optical drive bay
5
Video connector
6
USB connectors (2)
• SFF model with optional hard drive cage
Item Description
1
Quick release levers (2)
2
Systems Insight Display
3
Hard drive bays
4
Hard drive bays (optional)
5
Video connector
