Hardware options installation 57
5.

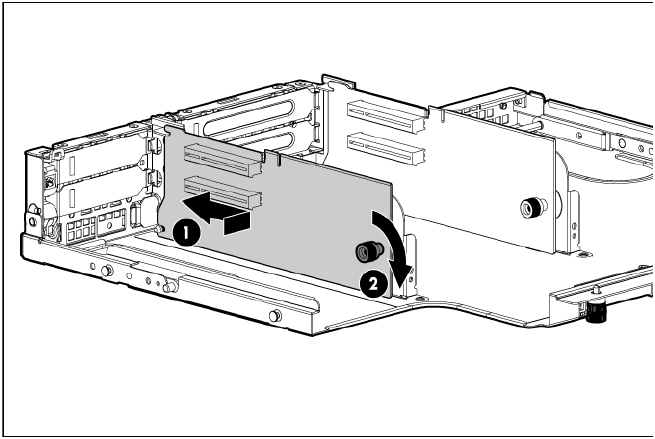

Install the optional riser board.
6. Install any expansion boards. ("Expansion board options" on page 53)
7. Install the PCI riser cage.
8. Install the access panel (on page 24).
9. Install the server into the rack.
10. Power up the server (on page 22).
Hard drive cage option
Installation of a SAS expander card or an additional SAS controller option is required to support the hard
drive cage option.
1. Power down the server (on page 22).
2. Extend the server from the rack (on page 22).
3. Remove the access panel (on page 23).
4. If installed, disconnect and remove the optical drive cables ("Optical drive cabling" on page 63).
5. Remove the optical drive cage.
