Hardware options installation 55
7.
Connect any required internal or external cables to the expansion board. See the documentation that
ships with the expansion board.
8. Install the PCI riser cage.
9. Install the access panel (on page 24).
Installing a full-length expansion board
1. Power down the server (on page 22).
2. Extend the server from the rack (on page 22).
3. Remove the access panel (on page 23).
4. Remove the PCI riser cage (on page 26).
5. Remove the expansion slot cover ("Expansion board options" on page 53, "Removing expansion slot
covers" on page 53).

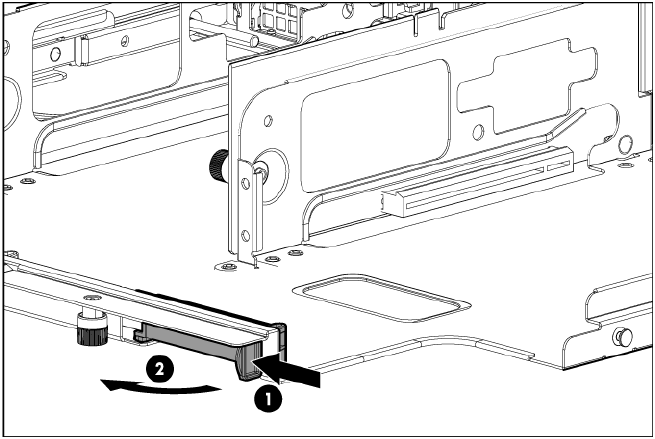

6. Open the full-length expansion board retainer.
7. Install the expansion board.
8. Close the slot cover latch.
