Hardware options installation 54
o

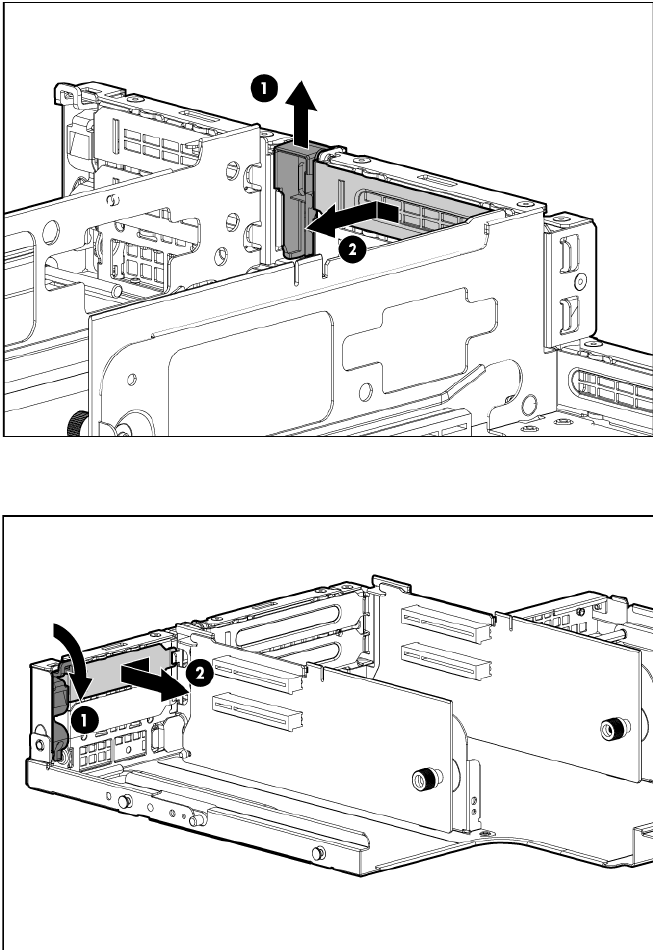

To remove slot covers 2 and 3, lift up on the latch, remove the latch, and then remove the cover.
o To remove slot covers 5 and 6, push down on the latch, rotate the latch down, and then remove the
cover.
Installing a half-length expansion board
1. Power down the server (on page 22).
2. Extend the server from the rack (on page 22).
3. Remove the access panel (on page 23).
4. Remove the PCI riser cage (on page 26).
5. Remove the expansion slot cover ("Expansion board options" on page 53, "Removing expansion slot
covers" on page 53).
6. Install the expansion board.
