Operations 24
1.
Power down the server if performing a non-hot-plug installation or maintenance procedure ("Power
down the server" on page 22).
2. Extend the server from the rack (on page 22).
3. Use the T-15 Torx screwdriver attached to the rear of the server to loosen the security screw on the hood
latch.
4. Lift up on the hood latch handle, and then remove the access panel.
Install the access panel
1. Place the access panel on top of the server with the hood latch open. Allow the panel to extend past the
rear of the server approximately 1.25 cm (0.5 in).
2. Push down on the hood latch. The access panel slides to a closed position.
3. Use the T-15 Torx screwdriver attached to the rear of the server to tighten the security screw on the hood
latch.
Access the product rear panel
Cable management arm with left-hand swing
To access the server rear panel:

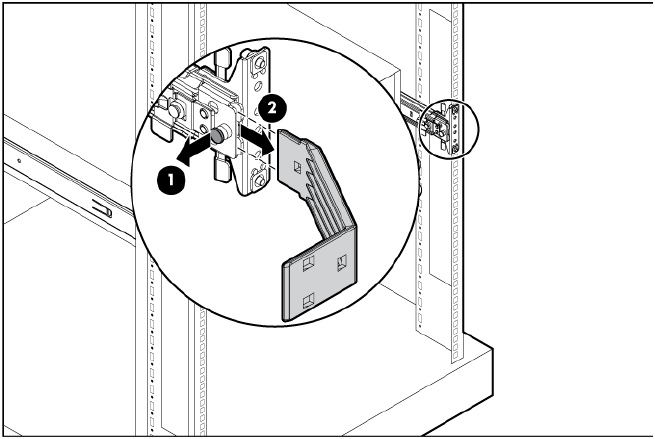

1. Remove the cable arm retainer.
