Component identification 13
Primary
(slot - form factor)
Secondary
(slot - form factor)
PCIe riser
slot description

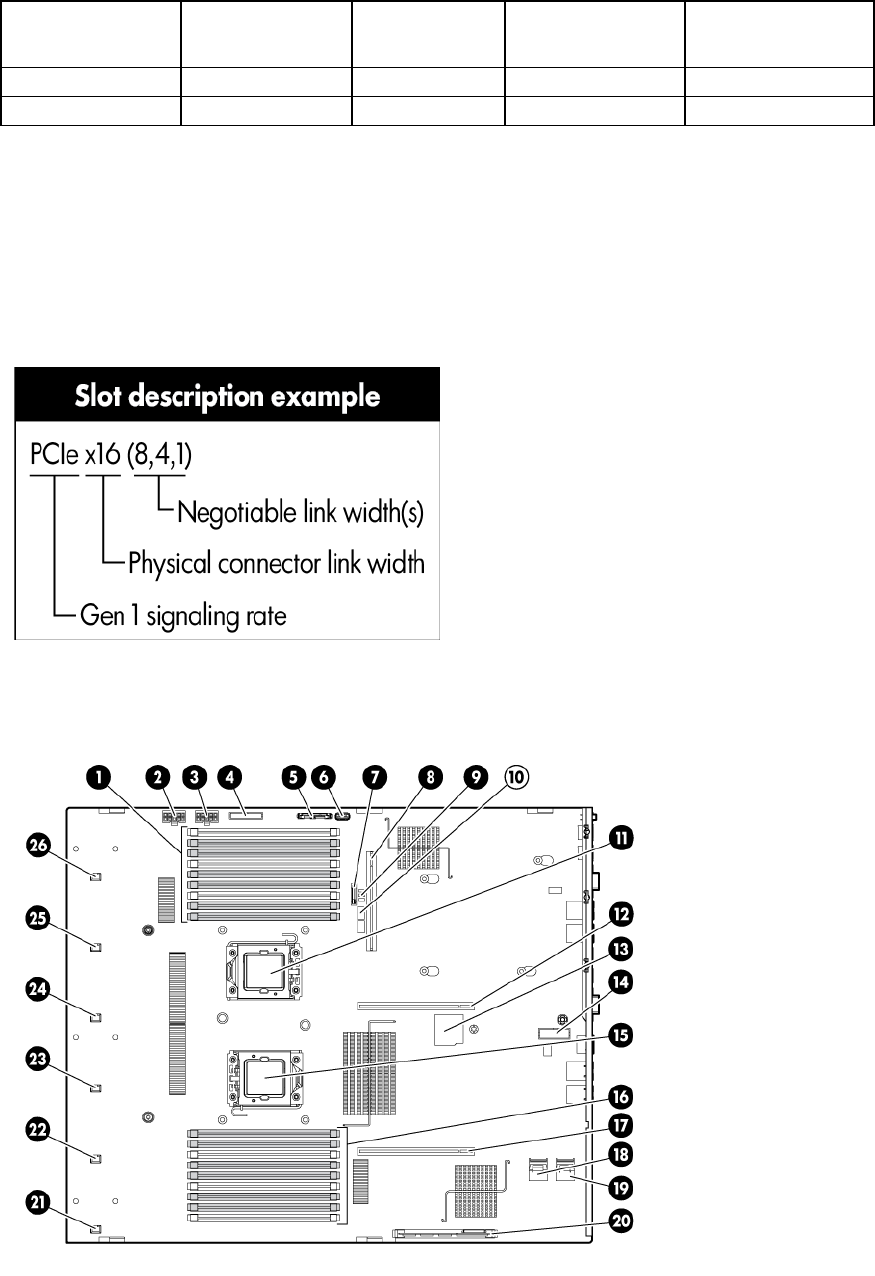

PCIe x16 riser
slot description
PCIe/PCI-X riser
slot description
2 - HL/FH
5 - LP
PCIe x8 (4,1)
—
PCIe x16 (8,4,1)
3 - HL/FH
6 - LP PCIe x8 (4,1) — PCIe x8 (4,1)
Notes:
• "Primary" denotes the risers are installed in the primary riser connector.
• "Secondary" denotes the risers are installed in the secondary riser connector.
• FL/FH denotes full-length, full-height. HL/FH denotes half-length, full-height. LP denotes low profile.
• The PCIe x16 riser supports a maximum power of 150W with an HP power cable. The cable supplied
with the riser must be used for PCIe card wattages greater than 75W.
System board components
