Smart Array Controller the SCSI bus master (Figure 7). External storage support is attained through
use of a Compaq fibre channel or SCSI array controller in either PCI slot.
System Board
PCI Riser
Assembly
SCSI Backplane
64-bit SCSI card
Hard Drive Hard Drive
ROC
Cable
SCSI Bus
Switch

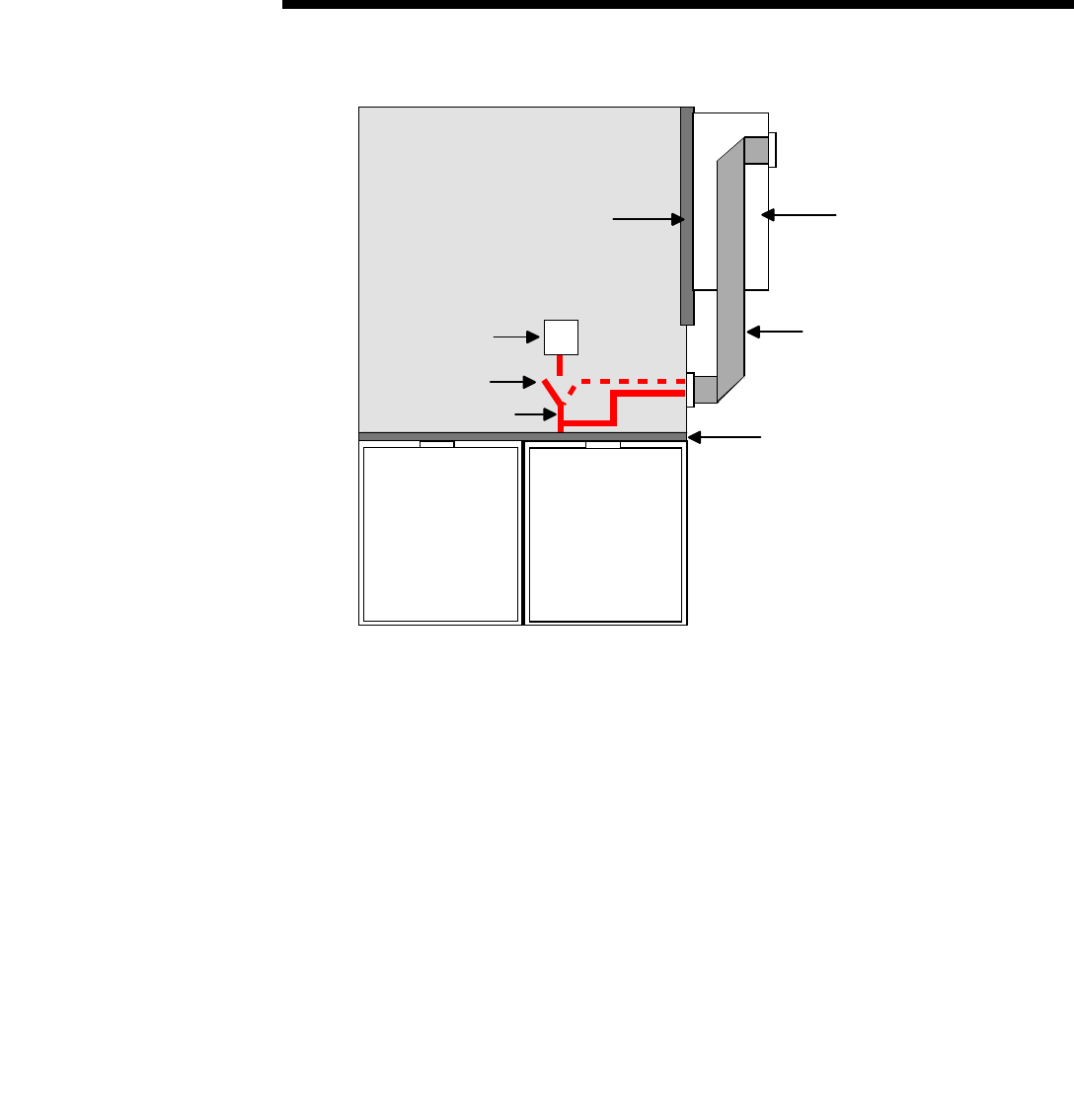

Figure 7. Installing the internal cable between a 64-bit SCSI array controller and the ProLiant
DL360 system board bypasses the integrated ROC array controller.
A PCI-to-ISA bridge connected to the conventional PCI bus supports a 1.44-MB floppy drive, a
low-profile IDE CD-ROM drive, the LED array, and the power switch.
The ProLiant DL360 server supports two integrated 10/100 Fast Ethernet Wake-on LAN network
interface controllers and a Rage IIc video controller with 4 MB of SGRAM. The server provides
external ports for mouse and keyboard, one serial port, a video port, two network ports, and one
VHDCI SCSI tape port.
Future developments are definitely planned for the ProLiant DL360 I/O subsystem. For example,
when they become available, the ProLiant DL360 server will support 15,000-rpm and 36.4-GB
hard drives.
Power Subsystem
Since the primary design goal for the ProLiant DL360 server was to provide a reliable, economical,
ultra-dense server, the server contains a single, modular power supply. The main power circuitry
supports the system board, hard disk drives, CD-ROM/floppy drives, and the PCI slots. The
auxiliary power circuitry supports the optional Remote Insight Lights-Out Edition. This power
supply provides total peak output of 190 watts.
SGRAM: synchronous
graphic random access
memory
VHDCI: very high
density cable
interconnect
