Component identification 9

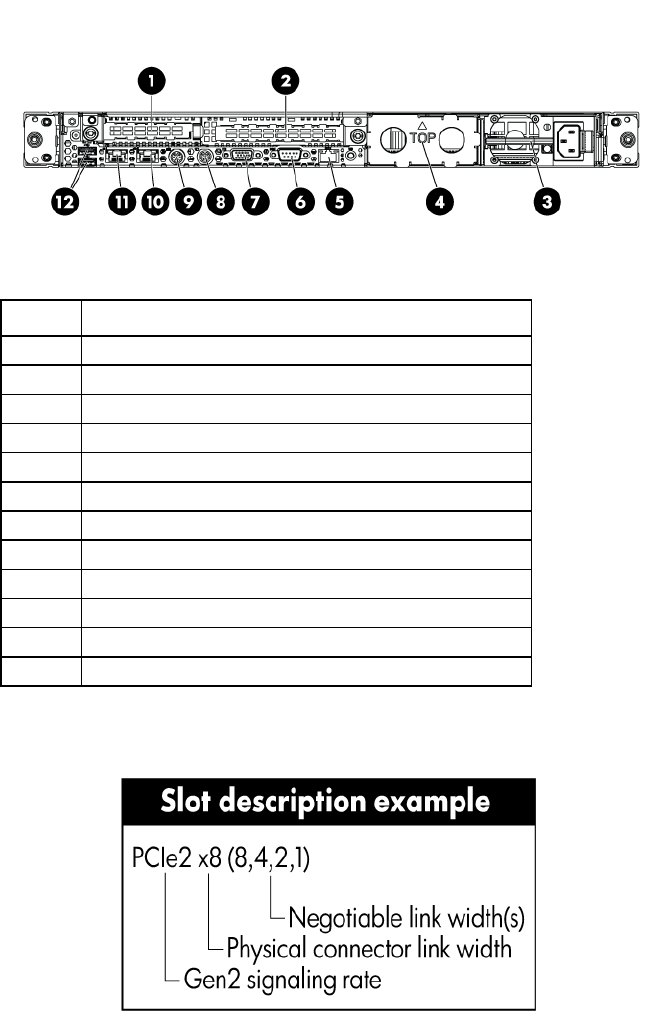

Rear panel components
Item Description
1
Slot 1 PCIe2 x8 (8, 4, 2, 1)
2
Slot 2 PCIe2 x16 (16, 8, 4, 2, 1), 75W +EXT 75W*
3
Power supply bay 1 (populated)
4
Power supply bay 2
5
iLO 2/NIC connector
6
Serial connector
7
Video connector
8
Mouse connector
9
Keyboard connector
10
NIC 2 connector
11
NIC 1 connector
12
USB connectors (2)
*This expansion slot provides 75 W of power to an adapter, with an additional 75 W of power supplied by external
power.
