Hardware options installation 63
HP NC522SFP Dual Port 10GbE Server Adapter
option
To install the component:
1. Power down the server (on page 19).
2. Extend the server from the rack (on page 19).
3. Remove the access panel (on page 21).
4. Remove the PCI riser board assembly (on page 23).
5. Remove expansion slot cover 1 from the PCI riser board assembly.

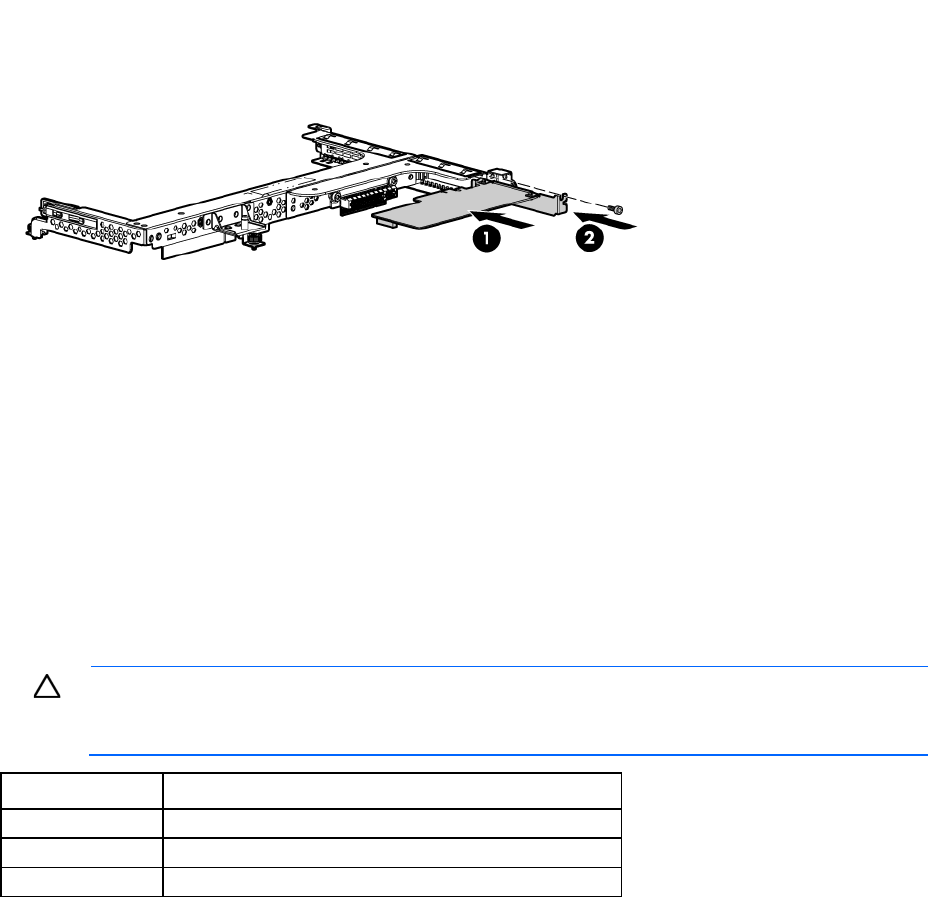

6. Install the adapter in slot 1 on the PCI riser board assembly.
7. Install the PCI riser board assembly (on page 24).
8. Install the access panel (on page 21).
9. Slide the server into the rack.
10. Power up the server (on page 19).
Redundant hot-plug power supply option
CAUTION: All power supplies installed in the server must have the same output power capacity.
Verify that all power supplies have the same part number and label color. The system becomes
unstable and may shut down when it detects mismatched power supplies.
Label color Output
Blue
460W
Orange
750W
Green
1,200W
