Hardware options installation 45
CAUTION: To avoid damage to the hard drives, memory, and other system components, the air
baffle, drive blanks, and access panel must be installed when the server is powered up.
1. Power down the server (on page 19).
2. Extend the server from the rack (on page 19).
3. Remove the access panel (on page 21).
4. Remove the BBWC battery pack, if installed ("Remove the BBWC battery pack" on page 21).
5. Remove the air baffle (on page 22).

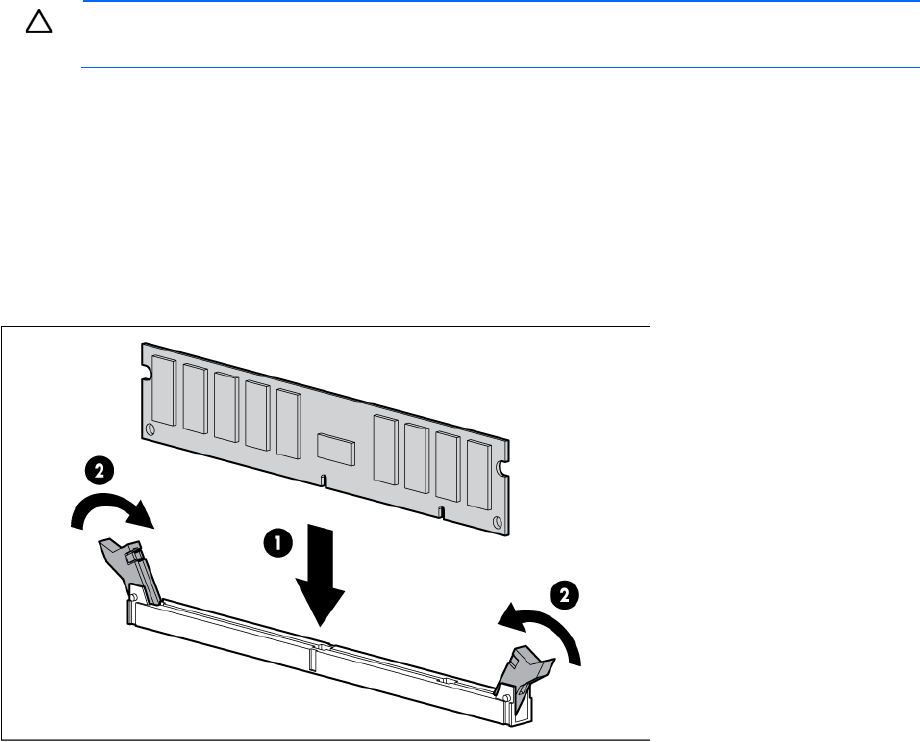

6. Open the DIMM slot latches.
7. Install the DIMM.
8. Install the air baffle (on page 22).
9. Install the BBWC battery pack, if removed ("Installing the BBWC battery pack" on page 57).
10. Install the access panel (on page 21).
If you are installing DIMMs in mirrored or lock-step configuration, configure this mode in RBSU ("HP
ROM-Based Setup Utility" on page 73).
For more information about LEDs and troubleshooting failed DIMMs, see "Systems Insight Display LED
combinations (on page 14)."
Hot-plug SAS and SATA hard drive options
When adding hard drives to the server, observe the following general guidelines:
• The system automatically sets all device numbers.
• If only one hard drive is used, install it in the bay with the lowest device number ("SAS and SATA device
numbers" on page 15).
• Hard drives must be SFF types.
• Drives should be the same capacity to provide the greatest storage space efficiency when drives are
grouped together into the same drive array.
