Component identification 11

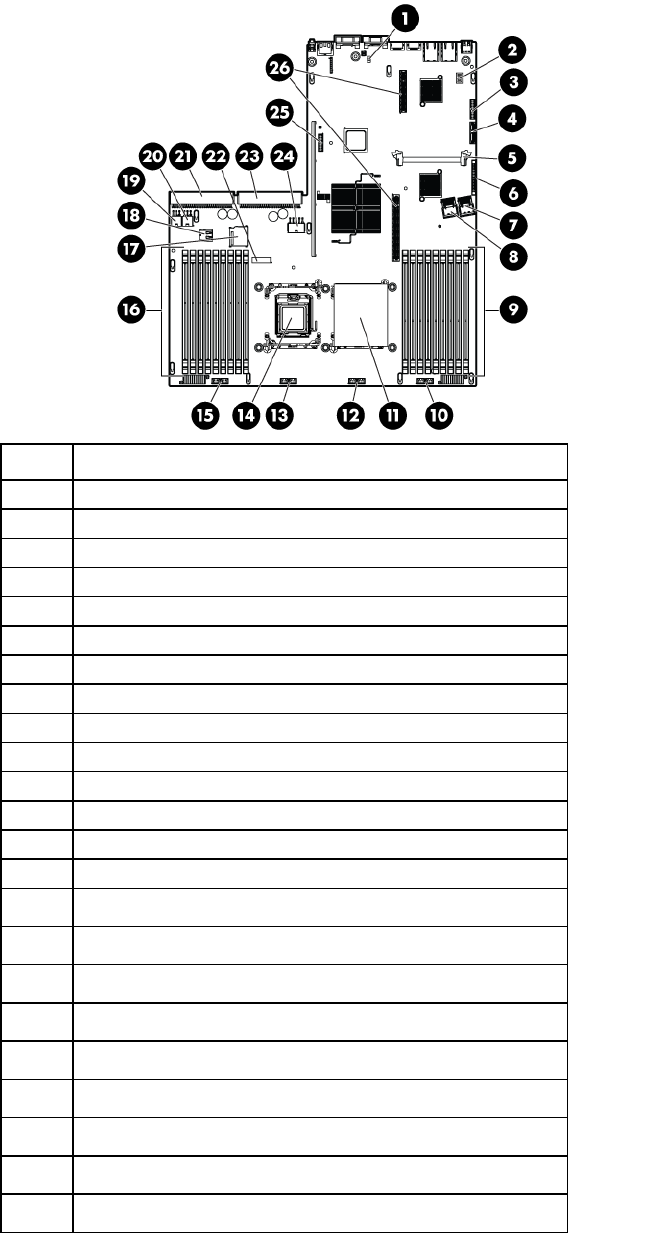

System board components
Item Description
1
NMI jumper
2
System maintenance switch
3
10Gb sideband connector (MII)
4
SATA DVD-ROM drive connector
5
SAS cache module connector
6
Power button connector
7
Hard drive data connector 1 (drives 1-4)
8
Hard drive data connector 2 (drives 5-8)
9
Processor 1 DIMM slots (9)
10
Fan module 4 connector
11
Processor socket 1 (populated)
12
Fan module 3 connector
13
Fan module 2 connector
14
Processor socket 2
15
Fan module 1 connector
16
Processor 2 DIMM slots (9)
17
SD card slot
18
Internal USB connector
19
Hard drive power connector 1
20
Hard drive power connector 2
21
Power supply connector 1
22
System battery
23
Power supply connector 2
