Server component identification
In this section
Front panel components..................................................................................................................7
Front panel LEDs and buttons........................................................................................................8
Rear panel components.................................................................................................................10
Rear panel LEDs and buttons .......................................................................................................11
System board components............................................................................................................12
System board LEDs......................................................................................................................14
System LEDs and internal health LED combinations ..................................................................15
Internal USB connector ................................................................................................................17
SCSI IDs and SATA device numbers...........................................................................................17
Fan module location .....................................................................................................................18

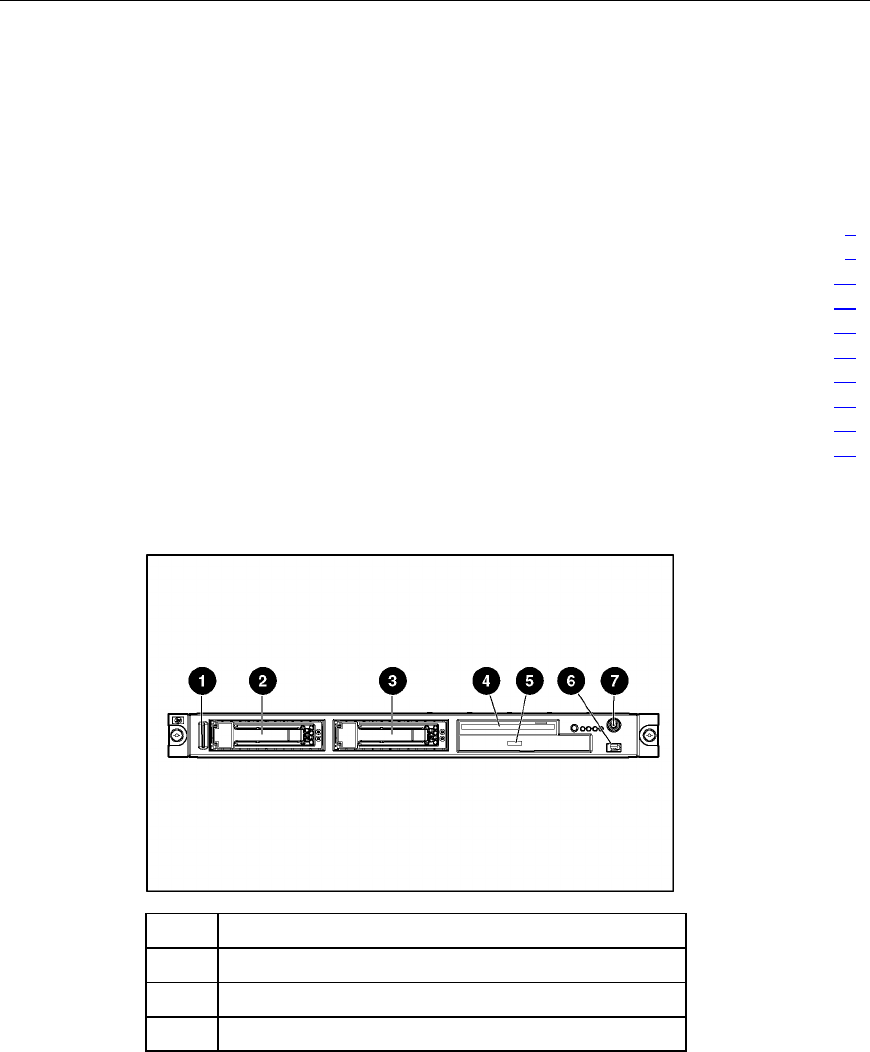

Front panel components
Item Description
1 Serial label pull tab
2 Hard drive bay 1
3 Hard drive bay 2
