46 HP ProLiant DL320 Generation 3 Server User Guide
1. Access the internal server components ("Preparation procedures" on page
20
).
2. Remove the PCI riser board assembly ("Removing the PCI riser board
assembly" on page 22
).
3. Disconnect the SCSI cables from the SCSI connectors on the system board
and SCSI drives and remove the cables, if installed.
4. Route the PCI SCSI array controller cables under the PCI riser board
assembly.
5. Connect the SCSI cables.
6. Install the PCI-X or PCI Express riser board assembly.
IMPORTANT: The server will not power up if the PCI riser board
assembly is not seated properly.

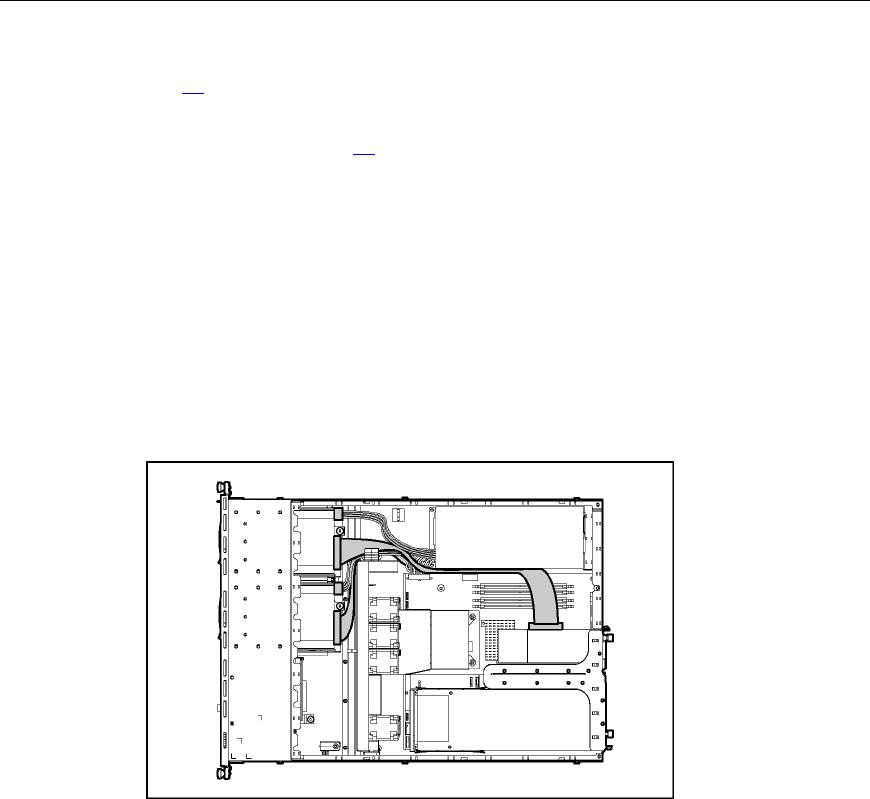

7. Verify proper cable routing with the following illustration.
