42 HP ProLiant DL320 Generation 3 Server User Guide

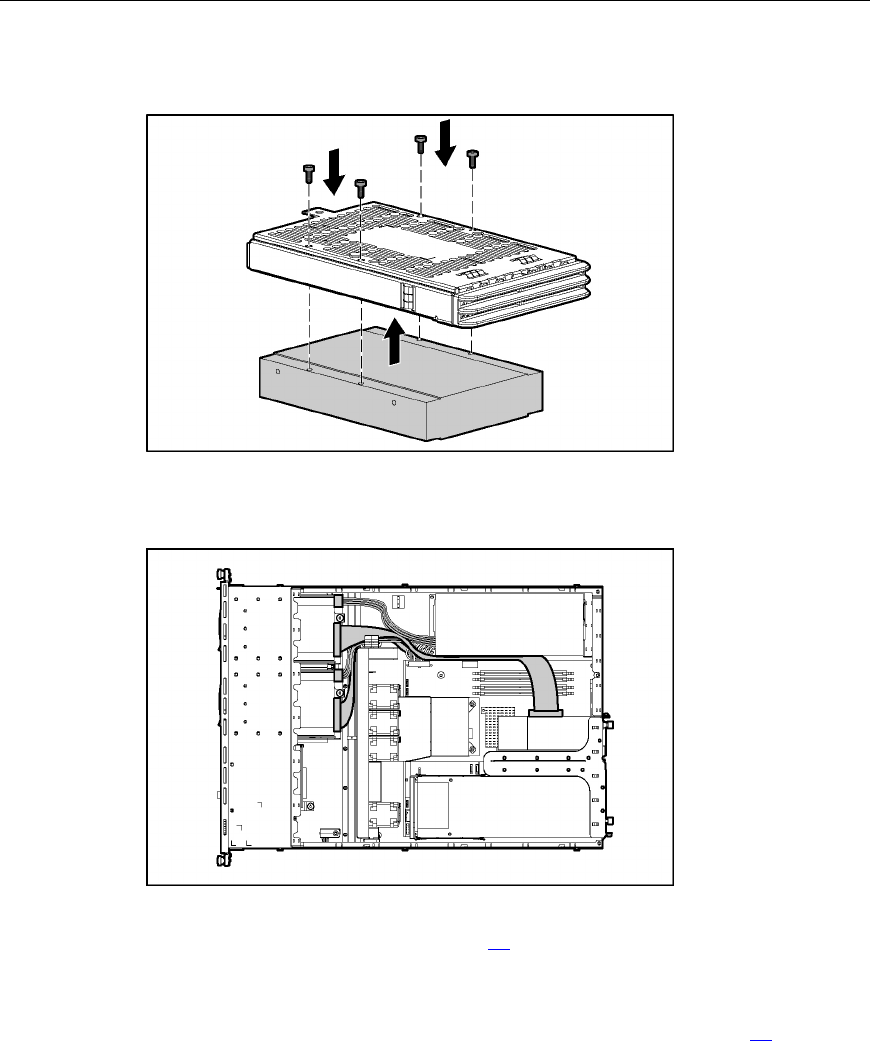

5. Place the hard drive into the hard drive tray, and secure by fastening four
screws into the bottom of the hard drive tray.
6. Replace the hard drive into the hard drive bay and install the screws.
7. Reconnect the power cable and the two-device SCSI cable to the hard drive.
8. Install a PCI SCSI Array Controller ("Installing a PCI SCSI array controller
or a PCI SCSI controller" on page 45
).
NOTE: HP recommends the 64-Bit/133-MHz Single Channel Ultra320
SCSI HBA G2 SCSI controller be installed in the the low profile slot.
9. Replace the access panel ("Removing the access panel" on page 21).
