12 HP ProLiant DL320 Generation 3 Server User Guide

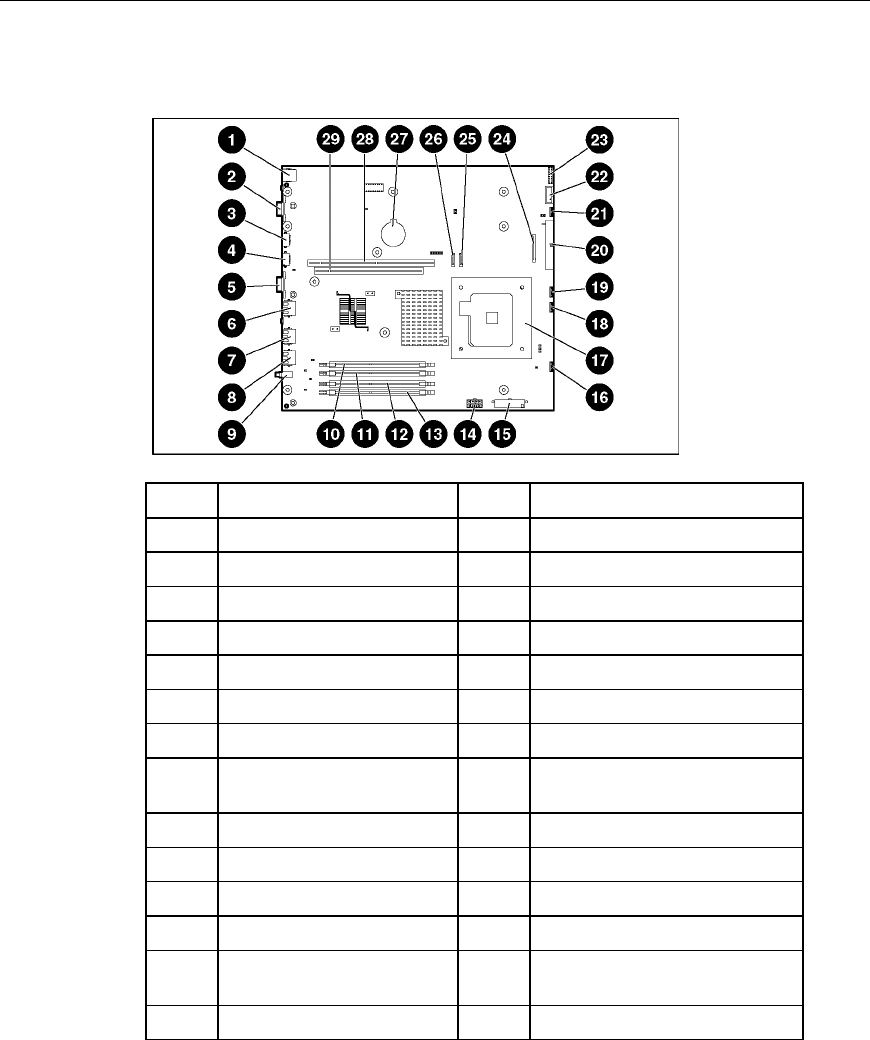

System board components
Item Description Item Description
1 Rear USB connectors (2) 16 Fan 1 connector
2 Video connector 17 Processor socket
3 Mouse connector 18 Fan 2 connector
4 Keyboard connector 19 Fan 3 connector
5 Serial connector 20 CD-ROM IDE connector
6 iLO management port 21 Fan 4 connector
7 10/100/1000 NIC 1 22 Front USB connectors (2)
8 10/100/1000 NIC 2 23 Front panel LED board
connector
9 UID button/LED 24 Diskette drive connector
10 DIMM slot 1 (Bank A) 25 SATA hard drive connector 2
11 DIMM slot 2 (Bank A) 26 SATA hard drive connector 1
12 DIMM slot 3 (Bank B) 27 Battery
13 DIMM slot 4 (Bank B) 28 PCI-X 133-MHz or PCI
Express connector*
14 Power connector 29 PCI 100-MHz connector
