10 HP ProLiant DL320 Generation 3 Server User Guide

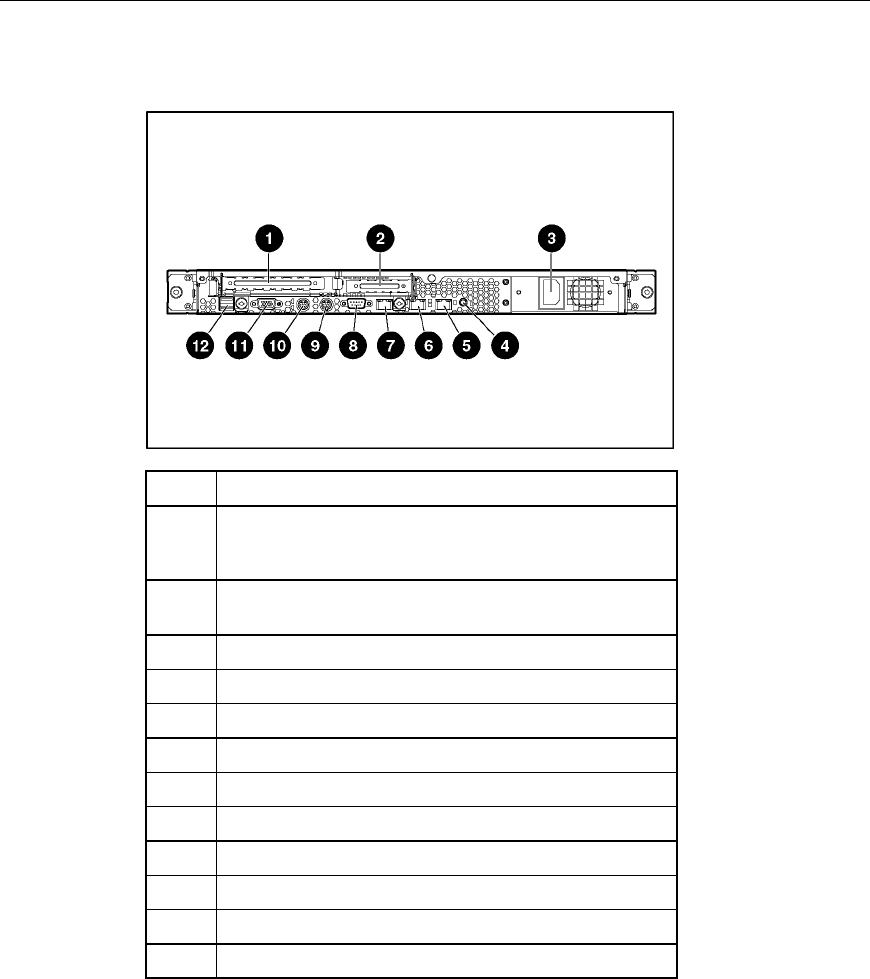

Rear panel components
Item Description
1 PCI-X expansion slot 2, full-length 64 bit/133 MHz
3.3 V (optional PCI Express slot 1, x8)
2 PCI-X expansion slot 1, low-profile half-length
64 bit/100 MHz 3.3 V
3 Power supply
4 UID button/LED
5 10/100/1000 NIC 2
6 10/100/1000 NIC 1
7 iLO management port
8 Serial connector
9 Keyboard connector
10 Mouse connector
11 Video connector
12 USB connectors
