Contents 72

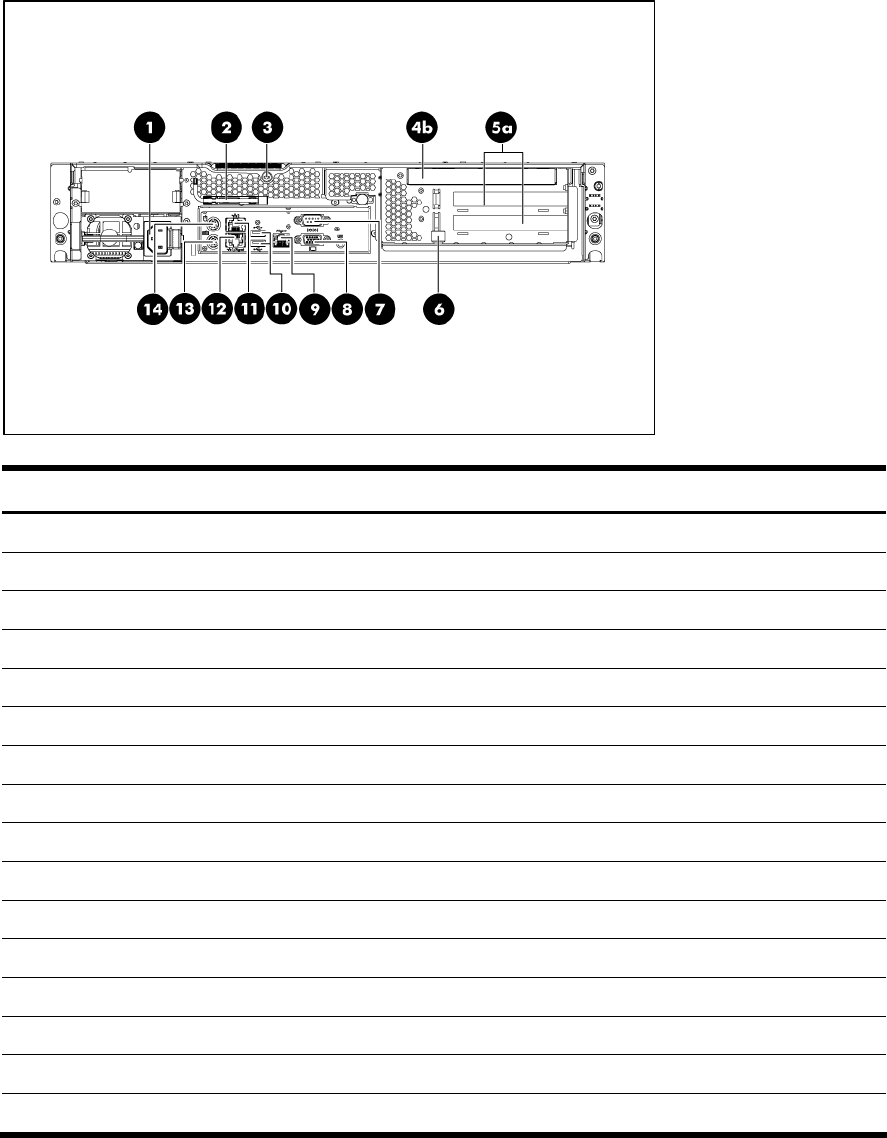

Figure 69 Rear panel components for ODD
Item Description
1 Power supply cable socket
2 T10/T15 Wrench
3 Thumbscrew for top cover
4a Low-profile PCI expansion card slot
4b Optical disc drive (ODD) bay
5a PCI card slot cover
5b Hard disk drive (HDD) bay
6 Thumbscrew for PCI cage
7 Serial port
8 VGA port
9 Management LAN port
10 Two USB 2.0 ports
11 GbE LAN port for NIC2
12 GbE LAN port for NIC1
13 PS/2 keyboard port (purple)
14 PS/2 mouse port (green)
