Contents 58

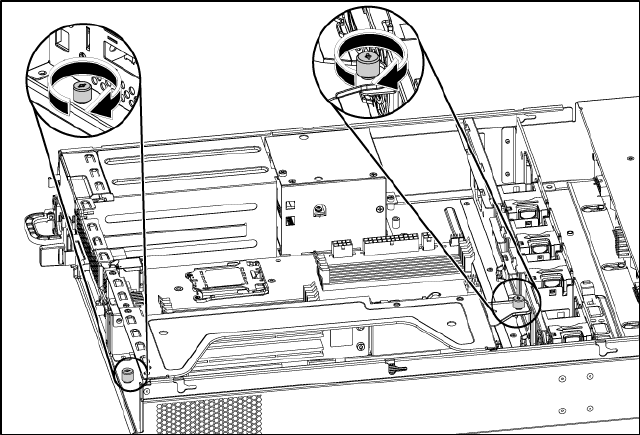

Figure 46 Securing the PCI cage
2. Tighten the two captive screws to secure the PCI cage to the chassis.
Installing PCIe/PCI-X Riser Board
The system supports up to two riser boards at a time. Use only HP supported expansion boards that
meet the following specifications:
• Compliance
○ PCI Express x4 or x8
○ PCI-X (available only when the optional PCI-X riser board is installed)
• Form Factor
○ Low-profile
○ Full-Height/Full-Length
