Contents 57

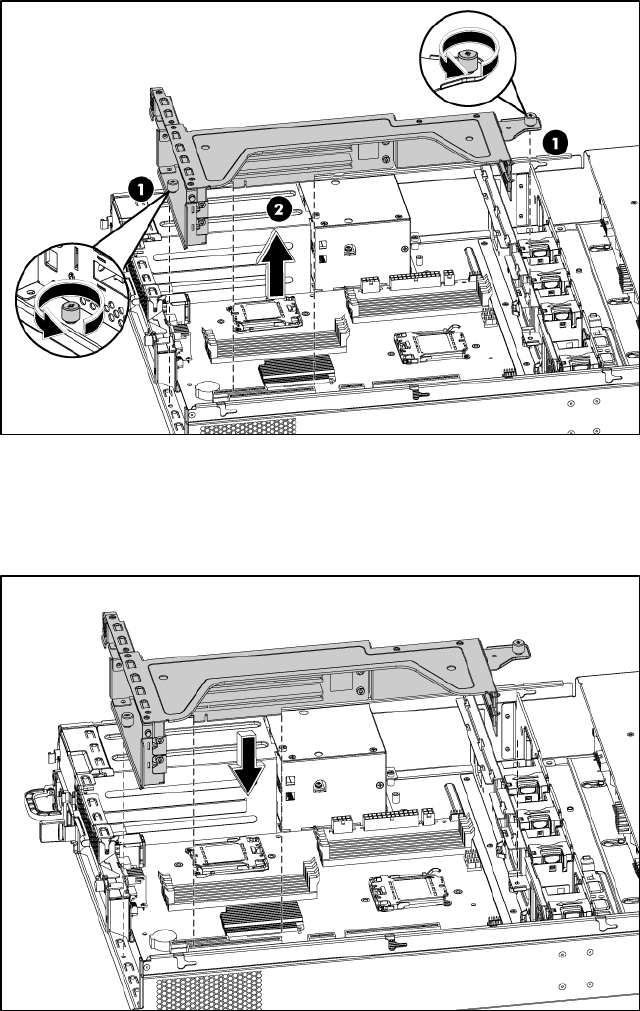

Figure 44 Removing the PCI cage
To install the PCI cage:
1. Align the PCI cage to the system board expansion slot, and then press it down to ensure full
connection to the system board.
Figure 45 Installing the PCI cage
