Hard Drives
The drive bays on the front panel can accommodate up to 8 hard drives. You can install 8 SAS hard
drives or SATA hard drives in the server.
For server with 8 HDD the hard drives installed in the server are labeled from Device 1 to Device 8,
from left to right, top to bottom, when viewed from the front of the server.

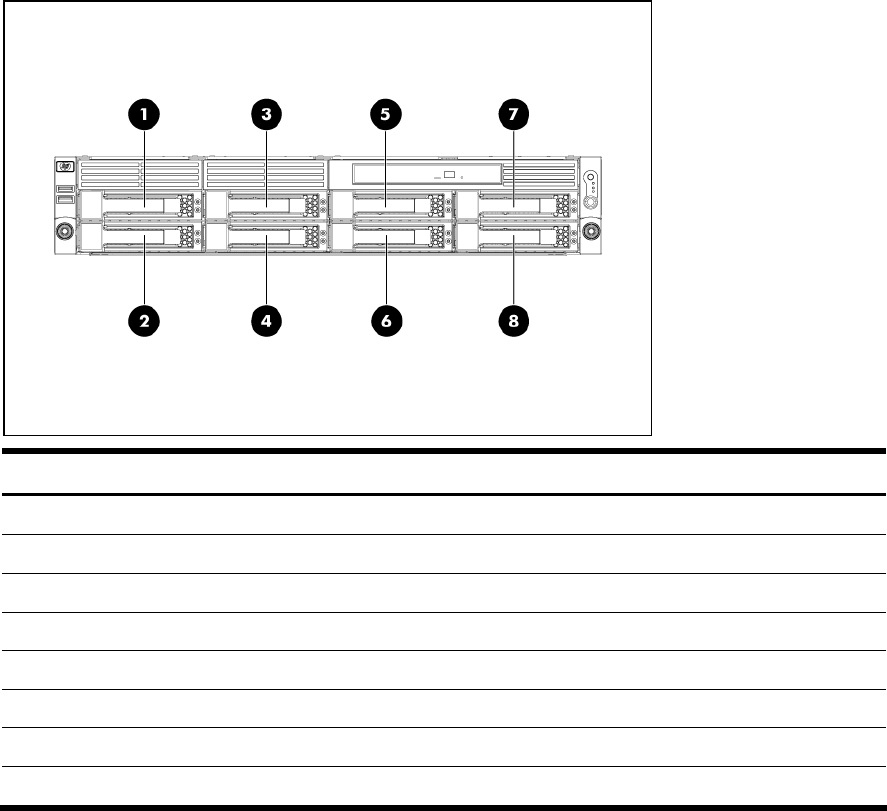

Figure 15 Hard Drive Bays Configuration / 8 HDD model
Item Description
1 1
st
SAS/SATA Hard Drive
2 2
nd
SAS/SATA Hard Drive
3 3
rd
SAS/SATA Hard Drive
4 4
th
SAS/SATA Hard Drive
5 5
th
SAS/SATA Hard Drive
6 6
th
SAS/SATA Hard Drive
7 7
th
SAS/SATA Hard Drive
8 8
th
SAS/SATA Hard Drive
