Contents 36

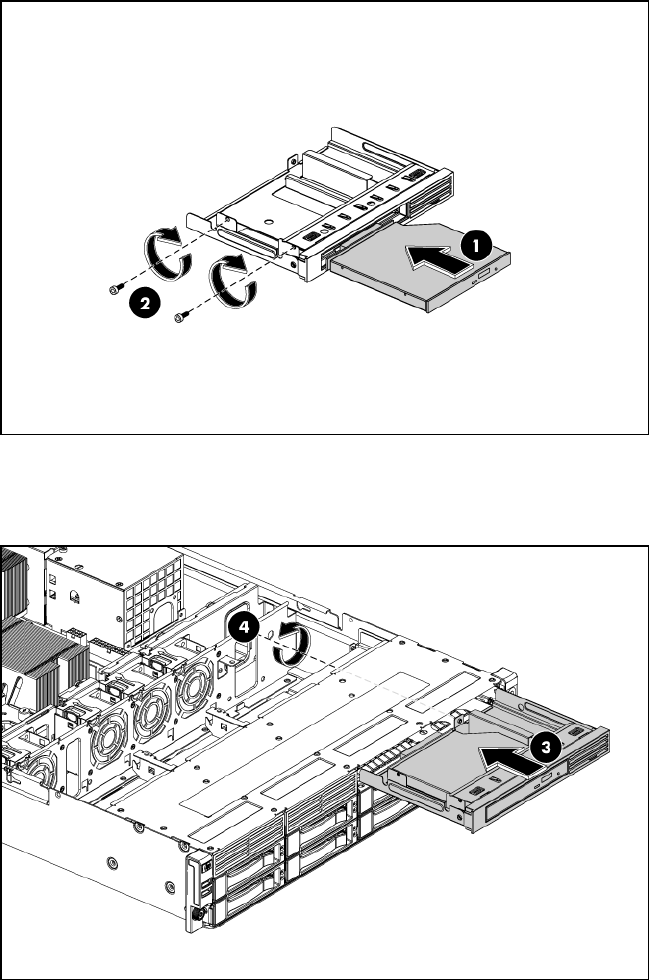

Figure 10 Assembling the Optical Drive and Carrier
3. Slide the optical drive assembly into the chassis.
4. Secure the optical drive to the chassis with the screw.
Figure 11 Installing the optical drive assembly
5. Connect the IDE data and power cables to their corresponding connectors on the optical drive.
