Removal and replacement procedures 45
c.

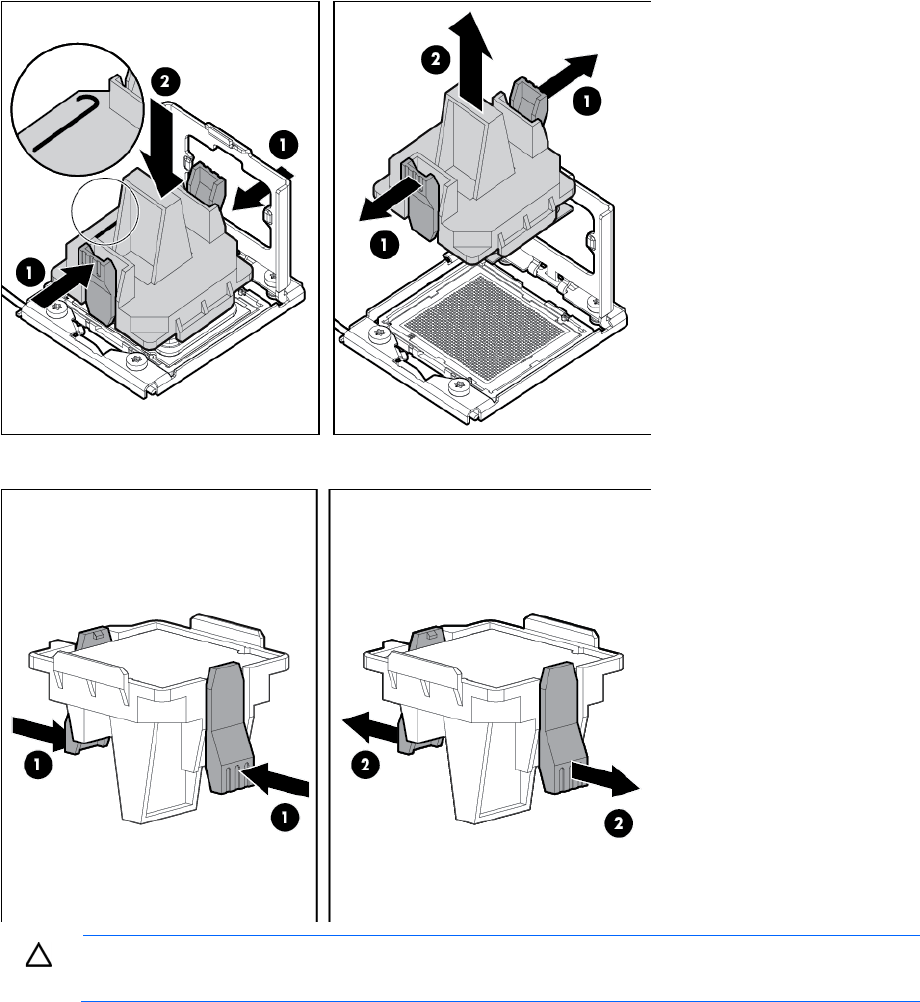

Release the tabs, and then carefully lift the processor and tool straight up.
14. Carefully rotate the tool, and then push in and release the tabs to secure the processor in the tool.
CAUTION: To avoid damage to the processor, do not touch the bottom of the processor,
especially the contact area.
