System board
To remove the component:
1. Power down the server blade (on page 23).
2. Remove the server blade (on page 24).
3. Remove the access panel ("Access panel" on page 25).
4. Remove all hard drives ("Hard drive" on page 26).
5. Remove all hard drive blanks ("Hard drive blank" on page 26).
6. Remove the front panel/hard drive cage assembly ("Front panel/hard drive cage assembly" on page
32).
7. Remove the left DIMM baffle ("Left DIMM baffle" on page 28).
8. Remove the right DIMM baffle ("Right DIMM baffle" on page 29).
9. Remove all DIMMs ("DIMM" on page 30).
10. Remove all mezzanine cards, if installed ("Mezzanine card" on page 31).
11. Remove the heatsink ("Heatsink" on page 36).

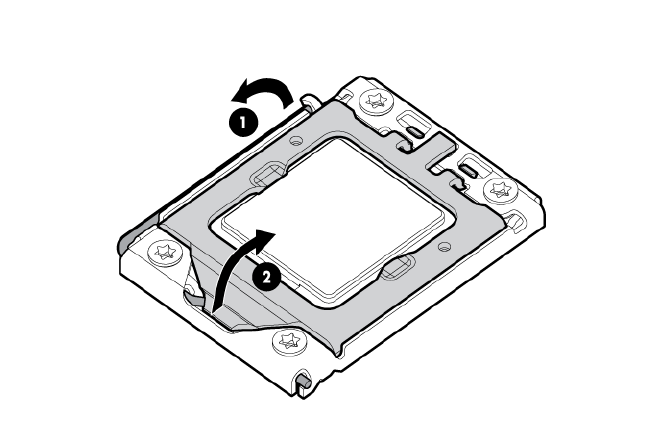

12. Open the processor locking lever and the processor socket retaining bracket.
13. Using the processor tool, remove the processor from the system board:
a. Line up the processor tool, ensuring the locking lever graphic on the tool is oriented correctly.
b. Press in on the plastic tabs, and then place the tool on the processor.
