Removal and replacement procedures 39
5.
Remove all hard drive blanks ("Hard drive blank" on page 26).
6. Remove the front panel/hard drive cage assembly ("Front panel/hard drive cage assembly" on page
32).
7. Remove the heatsink ("Heatsink" on page 36).

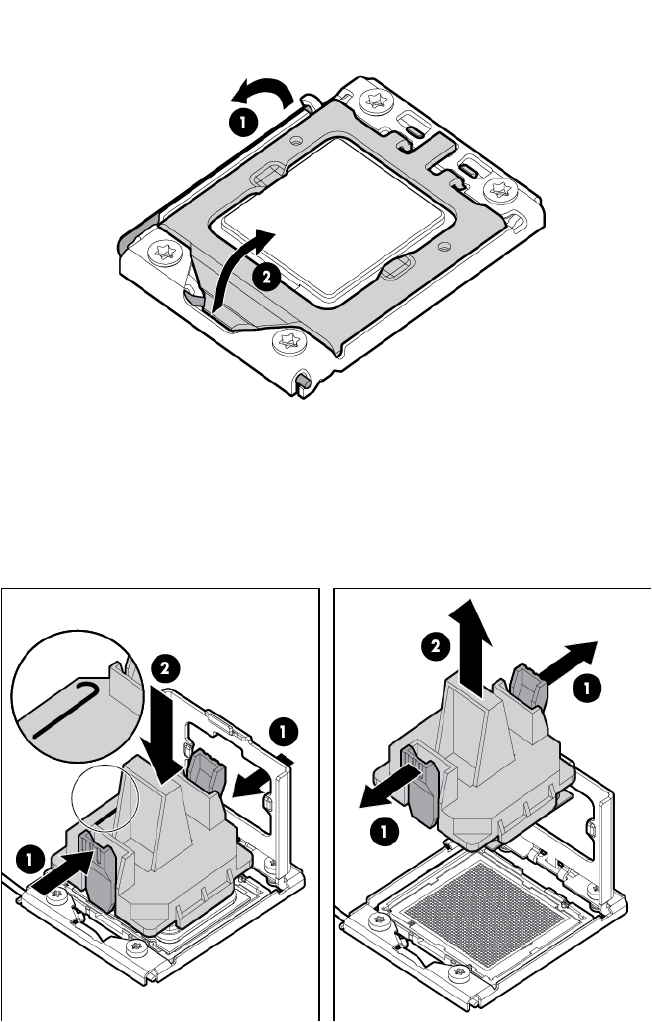

8. Open the processor locking lever and the processor socket retaining bracket.
9. Using the processor tool, remove the processor from the system board:
a. Line up the processor tool, ensuring the locking lever graphic on the tool is oriented correctly.
b. Press in on the plastic tabs, and then place the tool on the processor.
c. Release the tabs, and then carefully lift the processor and tool straight up.
