Removal and replacement procedures 37
2.
Remove the server blade (on page 24).
3. Remove the access panel ("Access panel" on page 25).
4. Remove all hard drives ("Hard drive" on page 26).
5. Remove all hard drive blanks ("Hard drive blank" on page 26).
6. Remove the front panel/hard drive cage assembly ("Front panel/hard drive cage assembly" on page
32).

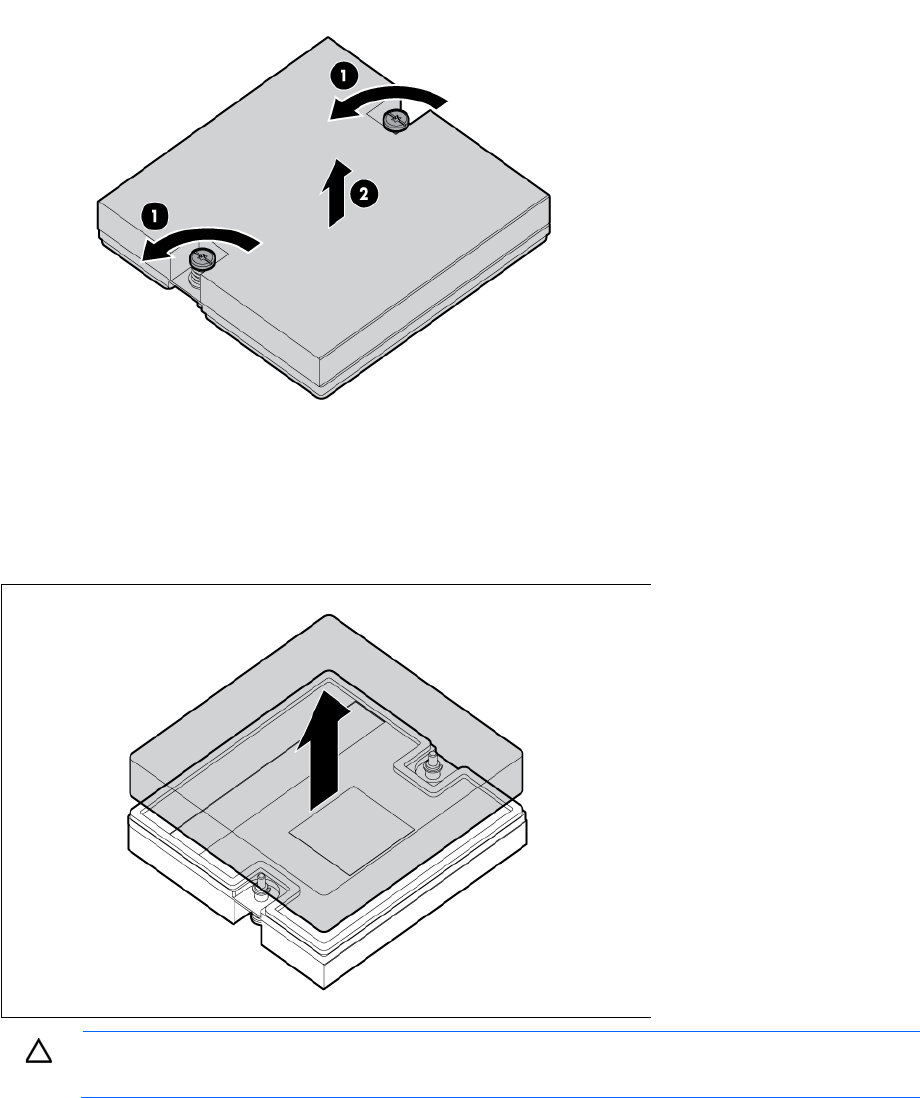

7. Remove the heatsink.
To replace the component:
1. Clean the old thermal grease from the processor with the alcohol swab. Allow the alcohol to evaporate
before continuing.
2. Remove the thermal interface protective cover from the heatsink.
CAUTION: Orient the heatsink as indicated in the procedure. Otherwise, you cannot install the
hard drive cage.
