Removal and replacement procedures 32
4.

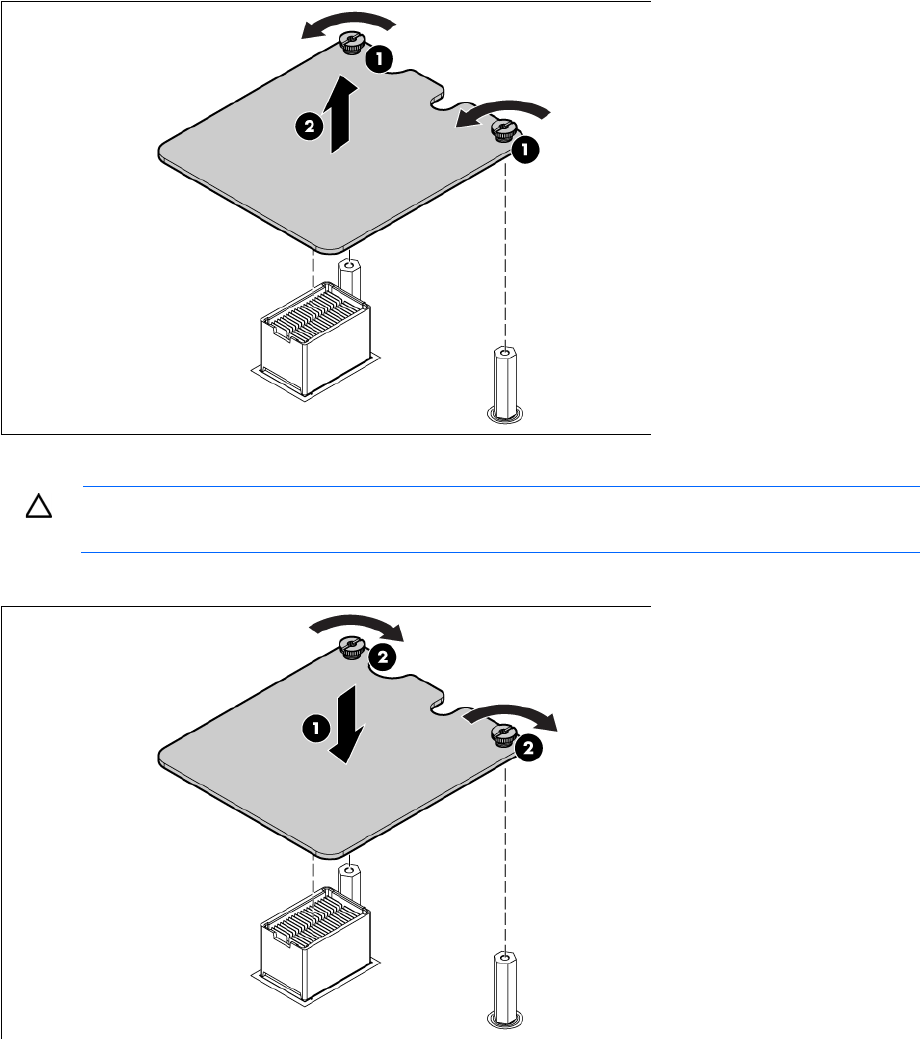

Remove the mezzanine card.
To replace the component:
CAUTION: To prevent damage to the server blade, apply pressure over the mezzanine
connector when installing the mezzanine card. Do not apply pressure to the edges of the card.
1. Install the mezzanine card. Press down on the connector to seat the board.
2. Install the access panel ("Access panel" on page 25).
Front panel/hard drive cage assembly
To remove the component:
1. Power down the server blade (on page 23).
2. Remove the server blade (on page 24).
