Removal and replacement procedures 29
7.

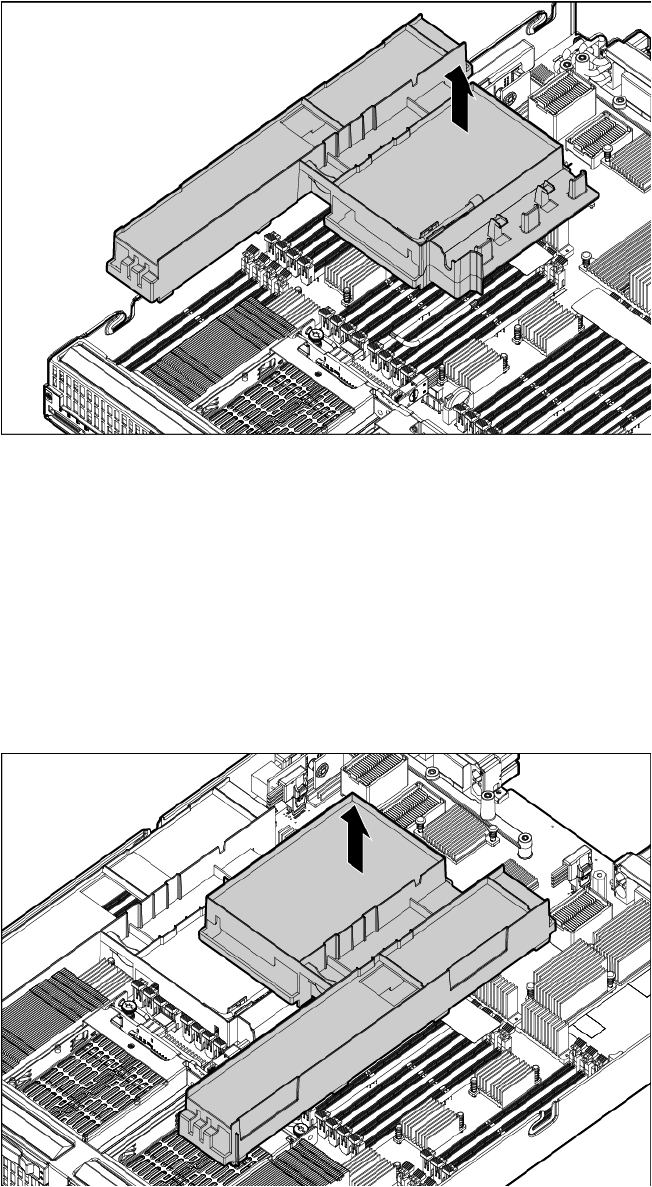

Remove the left DIMM baffle.
To replace the component, reverse the removal procedure.
Right DIMM baffle
To remove the component:
1. Power down the server blade (on page 23).
2. Remove the server blade (on page 24).
3. Remove the access panel ("Access panel" on page 25).
4. Remove the right DIMM baffle.
To replace the component, reverse the removal procedure.
