Removal and replacement procedures 28
4.

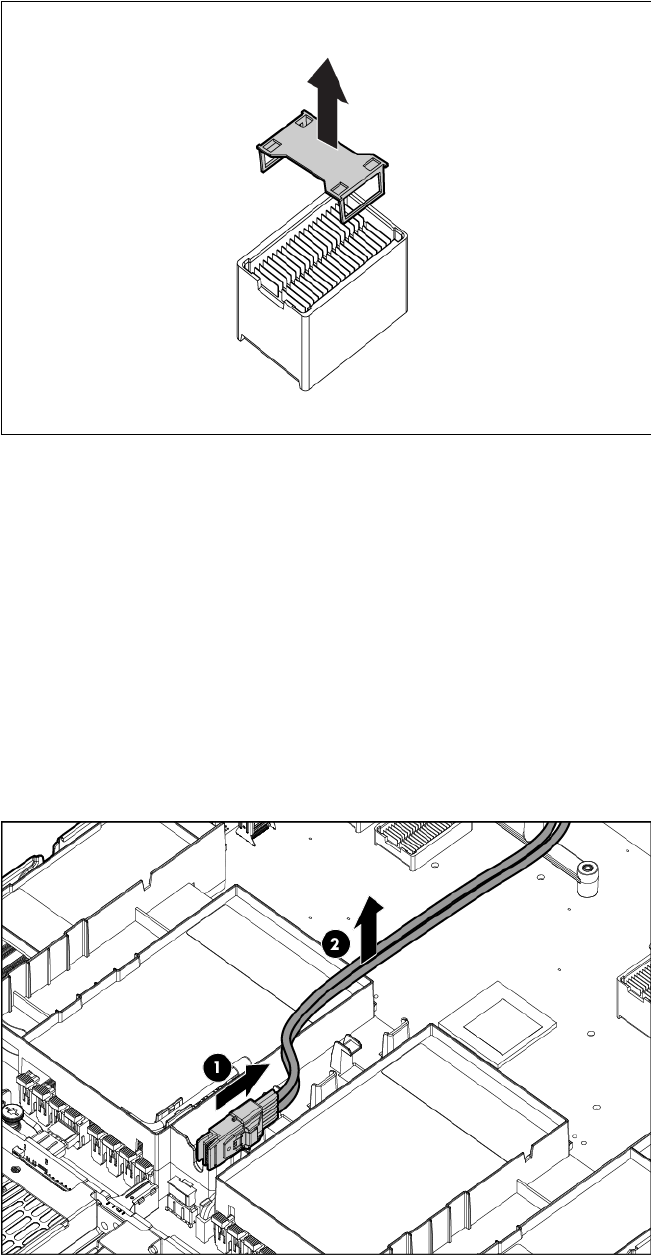

Remove the mezzanine connector cover.
To replace the component, reverse the removal procedure.
Left DIMM baffle
To remove the component:
1. Power down the server blade (on page 23).
2. Remove the server blade (on page 24).
3. Remove the access panel ("Access panel" on page 25).
4. If installed, remove the battery pack ("Removing the battery or capacitor pack" on page 34).
5. Disconnect the SAS/SATA cable from the SAS backplane.
6. Unroute the SAS/SATA cable.
