Component identification 10
The symbols
correspond to the symbols located on the interconnect bays. For more information, see the
HP ProLiant BL480c Server Blade Installation Instructions that ship with the server blade.

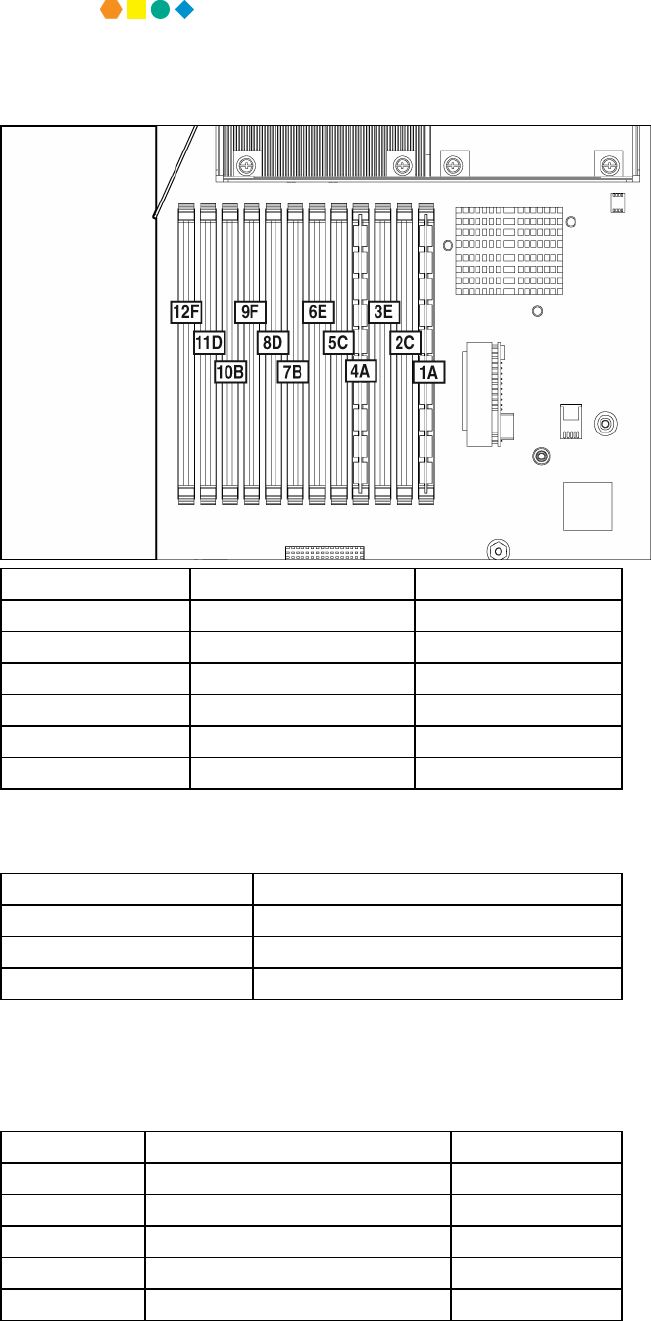

FBDIMM slot numbering
FBDIMM slots Memory bank Memory branch
1 and 4 A 0
7 and 10 B 1
2 and 5 C 0
8 and 11 D 1
3 and 6 E 0
9 and 12 F 1
Mezzanine connector definitions
Item PCIe
Mezzanine connector 1 x4, Type I mezzanine card only
Mezzanine connector 2 x8, Type I or II mezzanine card
Mezzanine connector 3 x8, Type I or II mezzanine card
A PCIe x4 mezzanine connector supports x8 cards at up to x4 speeds. A PCIe x8 mezzanine connector supports x16
cards at up to x8 speeds.
System maintenance switch
Position Function Default
1* iLO 2 security override Off
2 Configuration lock Off
3 Reserved Off
4 Reserved Off
5* Password disabled Off
