Component identification 9
Online/activity
LED (green)
Fault/UID LED
(amber/blue)
Interpretation
Off
Steadily amber
A critical fault condition has been identified for this drive, and the
controller has placed it offline. Replace the drive as soon as
possible.
Off
Amber, flashing
regularly (1 Hz)
A predictive failure alert has been received for this drive. Replace
the drive as soon as possible.
Off
Off The drive is offline, a spare, or not configured as part of an array.

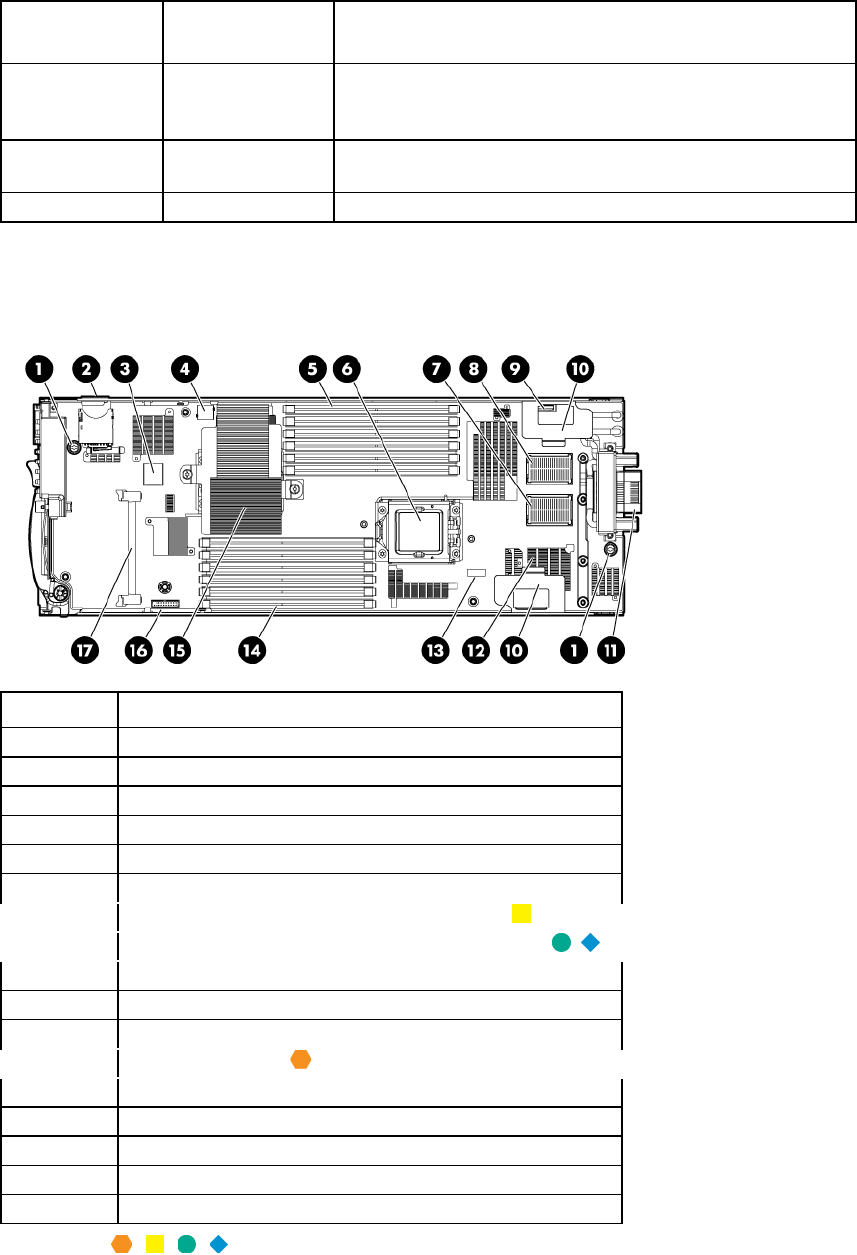

System board components
Item Description
1
System board thumbscrews (2)
2
SD card slot
3
Internal USB connector
4
Hard drive backplane connector
5
Processor 2 DIMM slots (6)
6
Processor socket 2
7
Mezzanine connector 1 (Type I mezzanine only)
8
Mezzanine connector 2 (Type I or Type II mezzanine)
9
System battery
10
Battery tray
11
Enclosure connector
12
Embedded NICs (2)
13
System maintenance switch
14
Processor 1 DIMM slots (6)
15
Processor socket 1 (populated)
16
TPM connector
17
Cache module connector
The symbols correspond to the symbols located on the interconnect bays. For more information, see the
HP ProLiant BL460c G6 Server Blade Installation Instructions that ship with the server blade.
