Component identification 10
Mezzanine connector definitions
A PCIe x8 mezzanine connector supports x16 cards at up to x8 speeds.
Item PCIe
Mezzanine connector 1
x8, Type I mezzanine card only
Mezzanine connector 2
x8, Type 1 or II mezzanine card

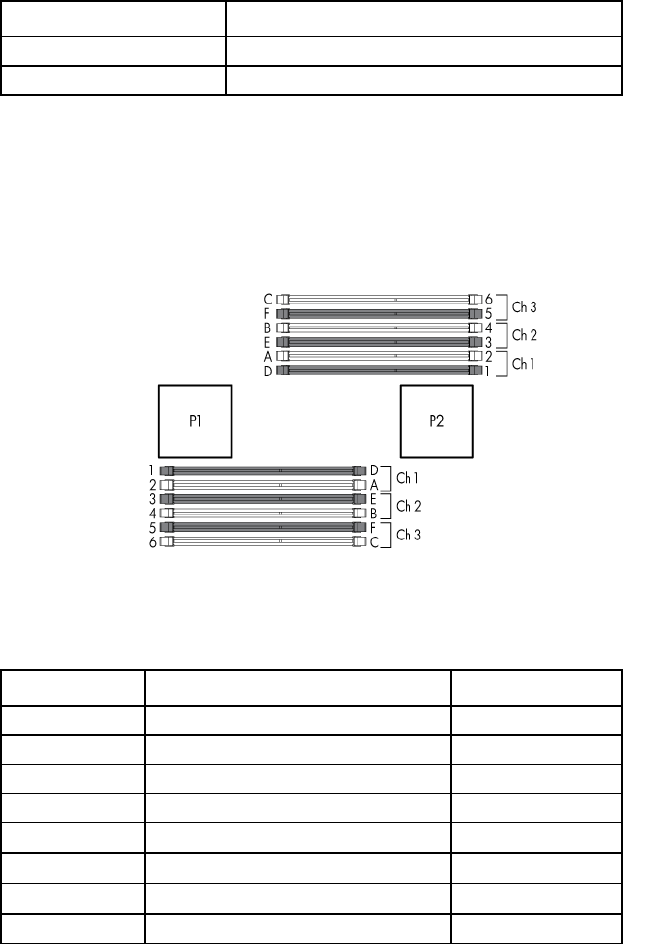

DIMM slot locations
DIMM slots are numbered sequentially (1 through 6) for each processor. The supported AMP modes use the
letter assignments for population guidelines.
System maintenance switch
Position Function Default
1*
iLO 2 security override Off
2
Configuration lock Off
3
Reserved Off
4
Reserved Off
5*
Password disabled Off
6*
Reset configuration Off
7
Reserved Off
8
Reserved Off
*To access redundant ROM, set S1, S5, and S6 to ON.
