Illustrated parts catalog 9

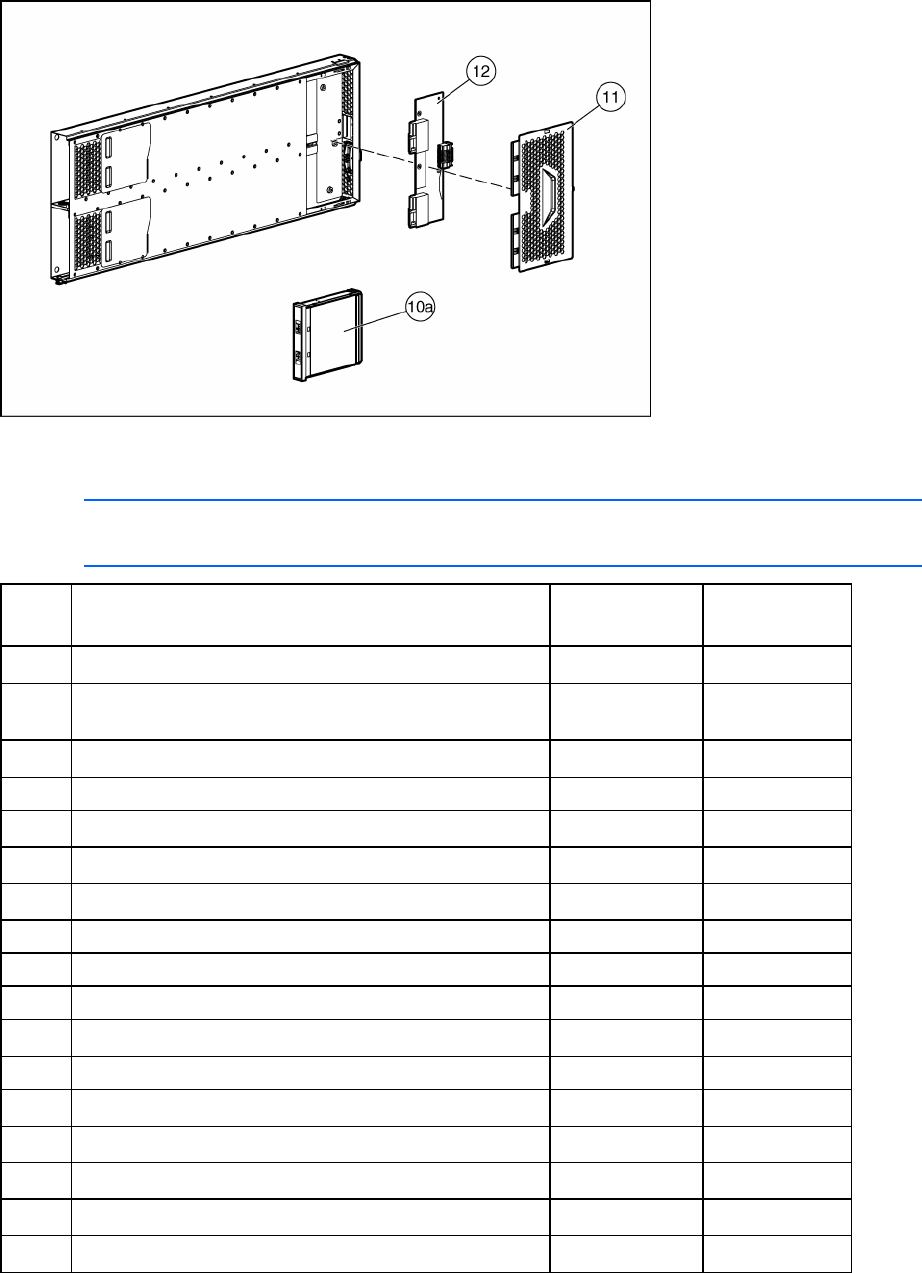

HP BladeSystem p-Class sleeve and blanks exploded view
Spare parts list (SAS models)
NOTE: Always retain the server blade handle. The handle contains a serial number that
maintains the original server blade warranty.
Item Description Spare part
number
Customer
replaceable?
Mechanical components
1 System board assembly, with two dual-core heatsinks and
LED board
404677-001 Yes
System components
2 Processor — —
a) 1.8-GHz AMD Opteron™ dual-core 395083-001 Yes
b) 2.2-GHz AMD Opteron™ dual-core 395085-001 Yes
c) 2.4-GHz AMD Opteron™ dual-core 414452-001 Yes
3 Fan assembly 361748-001 Yes
4 NIC riser board, mezzanine 381816-001 Yes
5 Power converter module 361752-001 Yes
Memory
6 DIMMs — —
a) DIMM, 512-MB, PC3200 DDR 400-MHz SDRAM 381817-001 Yes
b) DIMM, 1-GB, PC3200 DDR 400-MHz SDRAM 381818-001 Yes
c) DIMM, 2-GB, PC3200 DDR 400-MHz SDRAM 381819-001 Yes
d) DIMM, 4-GB, PC2700 DDR 333-MHz SDRAM 416258-001 Yes
Miscellaneous
