ProLiant BL35p Server Blade Maintenance and Service Guide
Table Of Contents
- HP ProLiant BL35p Server Blade Maintenance and Service Guide
- Notice
- Contents
- Illustrated parts catalog
- Removal and replacement procedures
- Safety considerations
- Preparation procedures
- ATA drive cage assembly
- ATA hard drive option
- SAS drive cage assembly
- SAS hard drive option
- SAS controller and cables
- Air baffle (dual-core processor models only)
- DIMMs
- Processor
- Fan assembly
- Dual Port Fibre Channel Adapter (2 GB)
- NIC riser board
- Power converter module
- Power button/LED cable
- Server blade handle
- System board assembly
- Server blade blanks
- HP BladeSystem p-Class sleeve
- HP BladeSystem p-Class sleeve board
- Diagnostic tools
- Component identification
- Specifications
- Acronyms and abbreviations
- Index

Illustrated parts catalog 8
Item Description Spare part
number
Customer
replaceable?
12 HP BladeSystem p-Class sleeve board 361746-001 Yes
13 Air baffle (dual-core processor systems only) 398028-001 Yes
14 Cable kit * 381805-001 Yes
a) Power button/LED cable — —
b) Hard drive cable — —
15 Replacement battery, 3-V lithium * 234556-001 Yes
16 Local I/O cable * 355935-001 Yes
*Not shown
SAS models

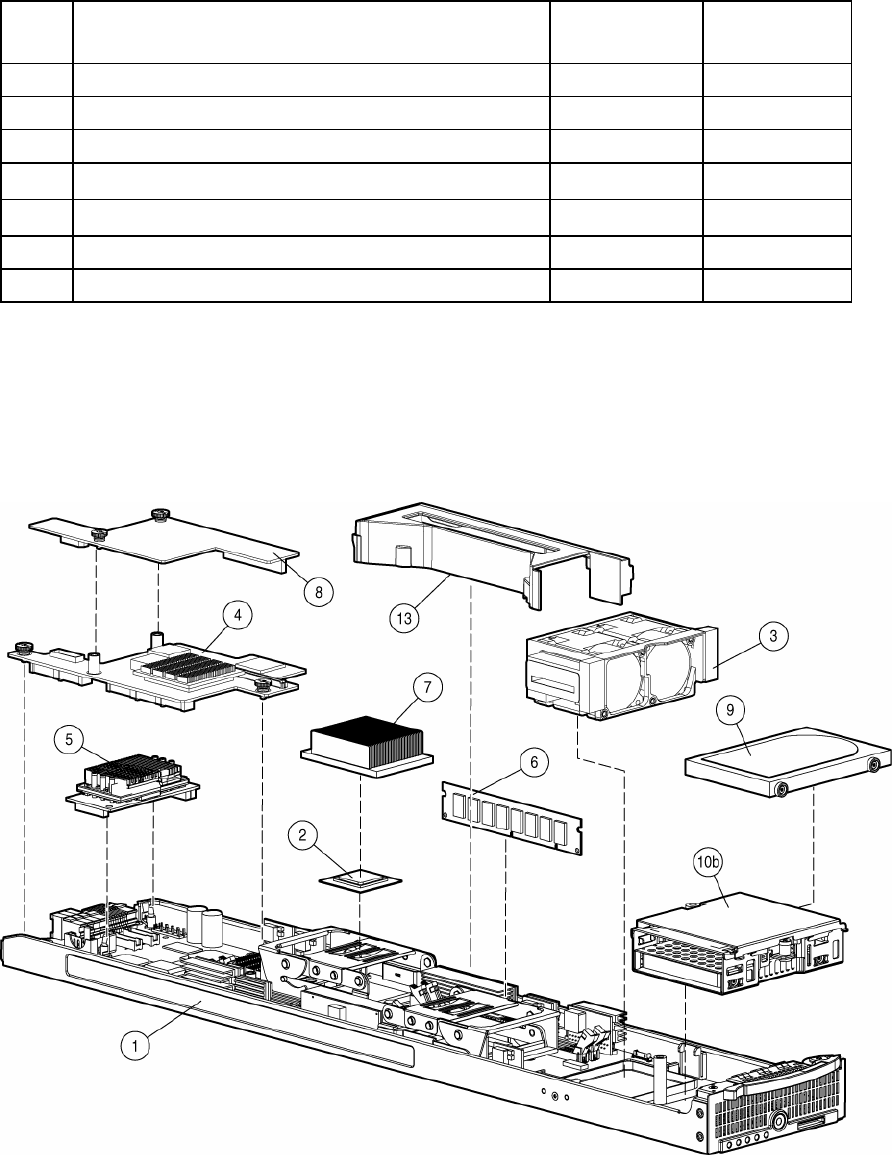

Server blade exploded view
