Component identification 37
System maintenance switch
Position Default Function
S1 Off Off = iLO security is enabled.
On = iLO security is disabled.
S2 Off Off = System configuration can be
changed.
On = System configuration is
locked.
S3 Off Reserved
S4 Off Reserved
S5 Off Off = Power-on password is
enabled.
On = Power-on password is
disabled.
S6 Off Off = No function
On = Clear configuration
S7, S8 Off, Off Reserved

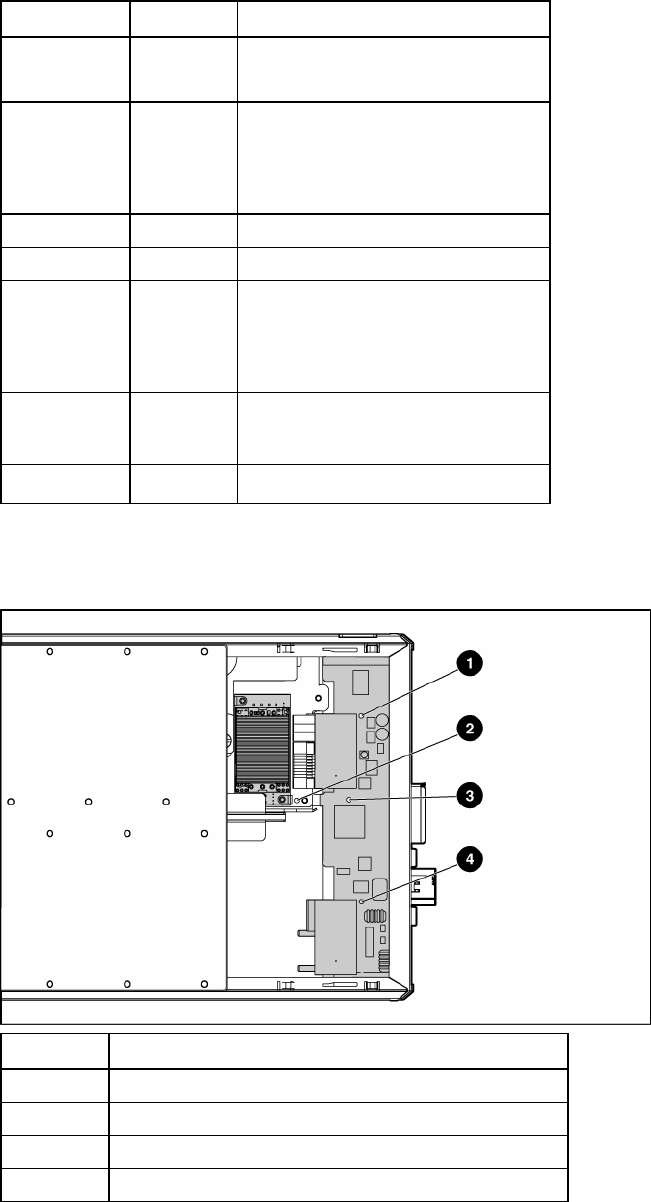

Sleeve board and server blade LED locations
Item Description
1 Blade sleeve power LED (CR6)
2 Power converter module LED (CR1)
3 FC LED (CR3)
4 Blade sleeve power LED (CR7)
